Removing Stopwatch

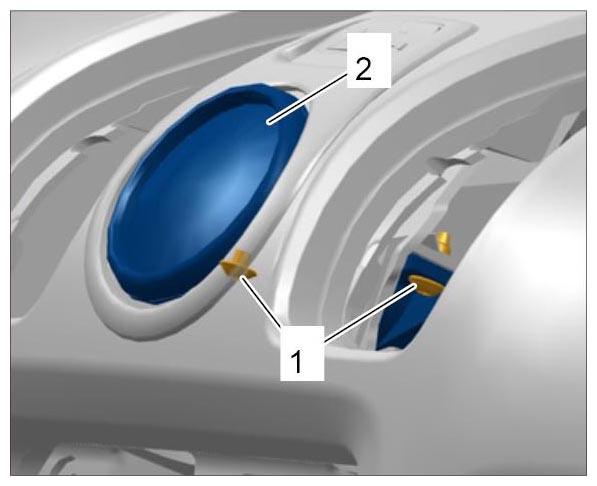

- Unscrew fastening screws -1-
.
- Slide the stopwatch -2-
to the rear and place it in the instrument panel.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

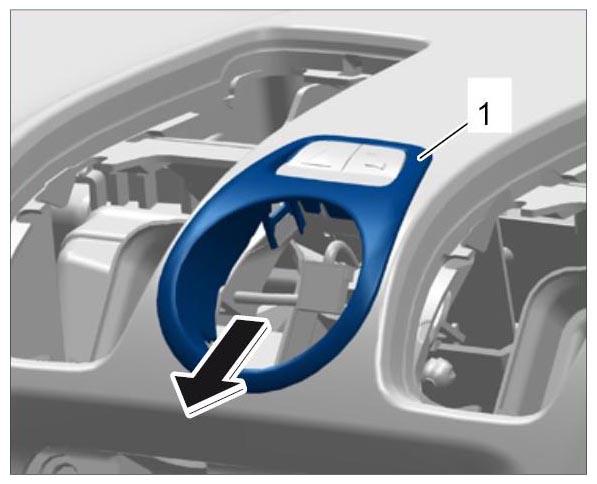

- Unclip the cover -1-
from the dashboard.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

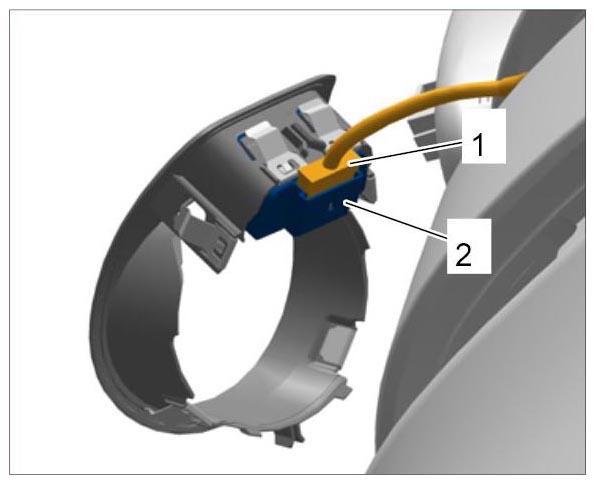

- Disconnect electric plug connection -1-
on the warning-light switch -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

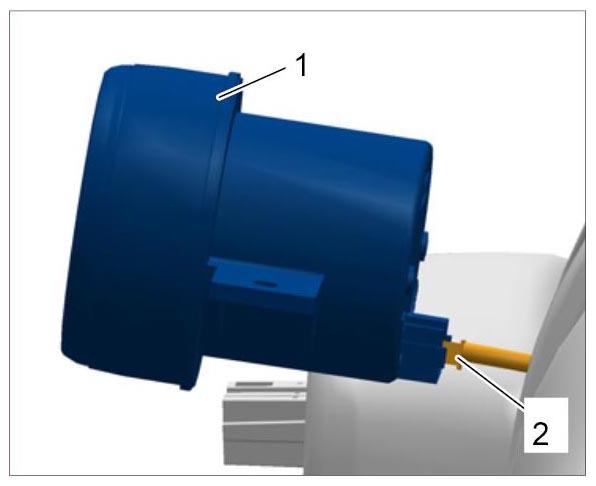

- Remove the stopwatch -1-
from the dashboard by pulling it forward.
- Disconnect electric plug connection -2-
on the stopwatch -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
