Removing Centre Console Antenna

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew the fastening screws -1- -arrows-  .
  2. Remove the KESSY antenna -2-  from the switch console -3-  .

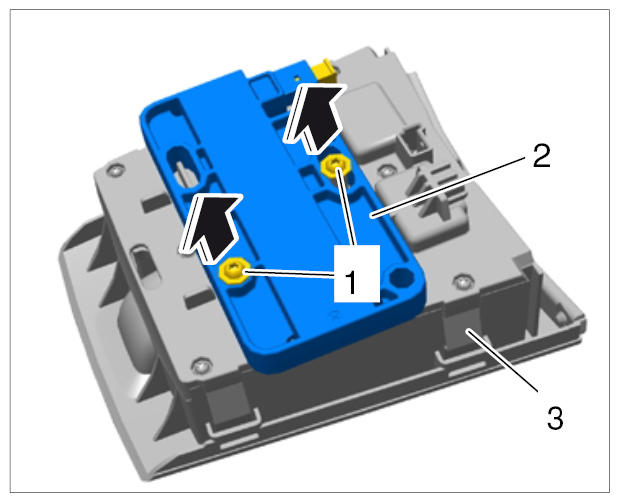

Fig 1: Removing KESSY Antenna In Center Console
G09999359Courtesy of PORSCHE CARS NORTH AMERICA, INC.
