Installing Rear Spoiler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order to removal.

When installing the spoiler, make sure that the guide pin is inserted into the guiding groove.

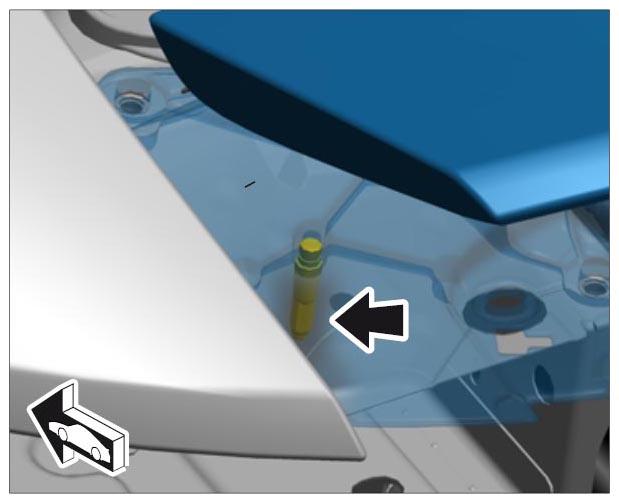

Fig 1: Inserting Guide Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw securing rear spoiler to rear apron. Tightening torque 3.2 Nm (2 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)

Fastening screw securing support plate to body. Tightening torque 23 Nm (17 ftlb.)
