Installing Heat Shield

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install heat shield.

  1. Position upper or lower part of heat shield on the relevant cylinder head cover.
    1. 1.1. Secure the heat shield with two external Torx screws (M6 x 12) and tighten screws to the specified torque.

      → Tightening torque: 10 Nm (7.5 ftlb.)



Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

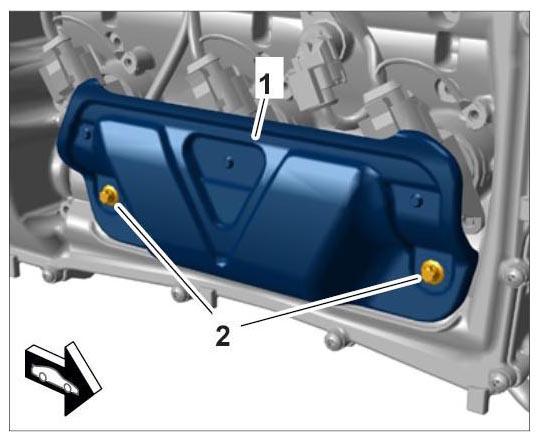

  1. Fit the heat shield -1-  using fastening screws -2-  and tighten screws.
    Fig 1: Identifying Heat Shield Screws (Cylinder Bank 4-6)
    G09991632Courtesy of PORSCHE CARS NORTH AMERICA, INC.


Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

  1. Installation is performed in reverse order.
