Installing Front Brake Calliper
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Replace brake calliper fastening screws each time they are removed.
- Install the brake calliper in reverse order to removal.

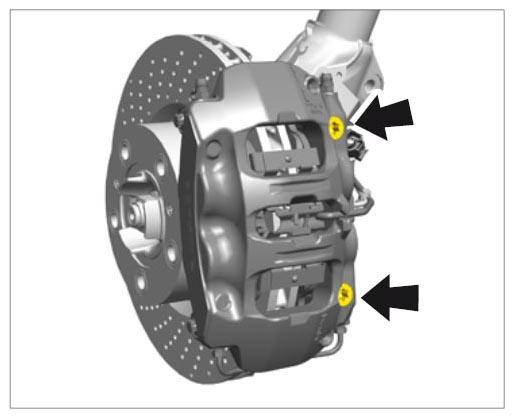

Use new fastening screws -arrows- . Tightening torque: 85 Nm (63 ftlb.).
Tightening torque for securing brake line to brake calliper: 14 Nm (10.5 ftlb.).
