Installing Brake Master Cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install the brake master cylinder.
1. 1.1. Fit the brake master cylinder and screw on and tighten the fastening nuts -5- on the brake master cylinder.
2. 1.2. If the brake master cylinder was replaced, insert the brake fluid reservoir -1- into the brake master cylinder. Use two new rubber seals.
3. 1.3. Tighten the fastening screw -2- on the brake fluid reservoir.
4. 1.4. Fit brake lines -4- .
5. 1.5. Plug in connectors -3- .

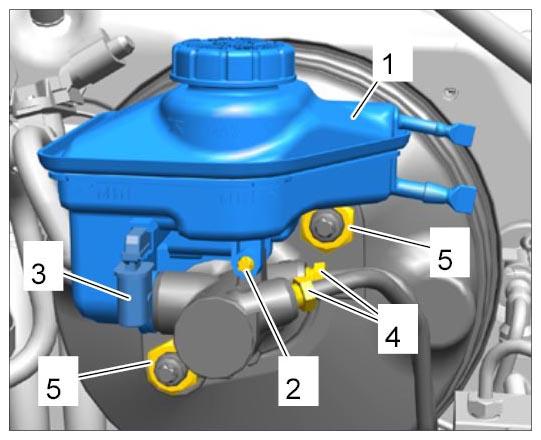

  Fig 1: Identifying Brake Master Cylinder Components
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
