Checking Brake Fluid Level

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The brake fluid level must not exceed the MAX mark.
Observe brake fluid quality. Use only new DOT 4 brake fluid.
This brake fluid is available under the following part numbers: Quantity supplied: 1 litre = 000.043.203.66; 30 litres = 000.043.203.67.

The brake fluid reservoir is located under the cover that is fitted over the brake components (brake booster, brake master cylinder and hydraulic unit).

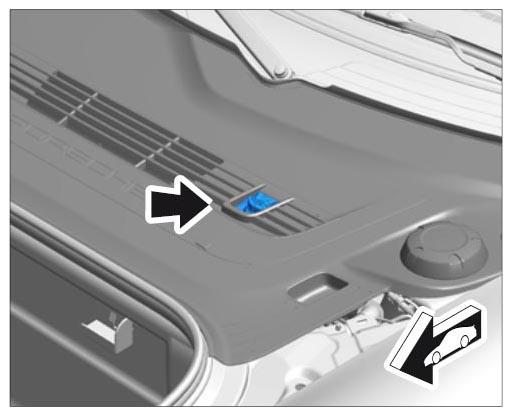

The brake fluid level can be checked through the opening in the cover (arrow).

Fig 1: Locating Cover Window

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

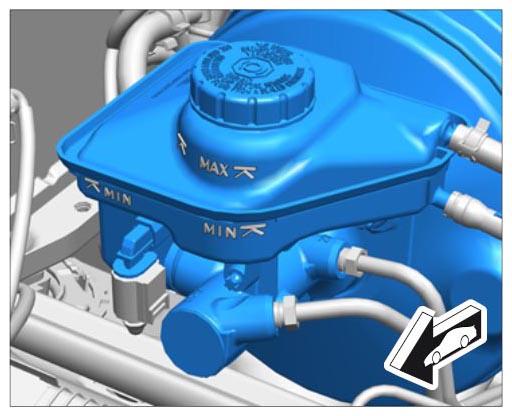

Visually check the brake fluid level. The brake fluid level must be between the MIN and MAX markings.

Fig 2: Identifying Min/Max Markings For Brake Fluid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

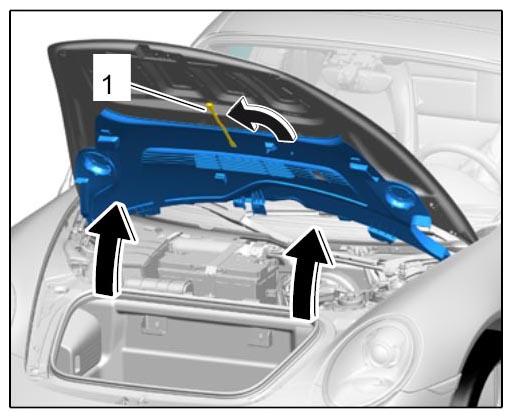

If the brake fluid level has to be corrected, move the cover -1- into service position.
Lift up the cover and engage the yellow support in the luggage compartment lid.

Fig 3: Lifting Service Position Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Correct the brake fluid level.
The cover is fitted in reverse order.
