Installing Switch For Reversing Light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw down switch for reversing light. → Tightening torque: 32 ftlb.

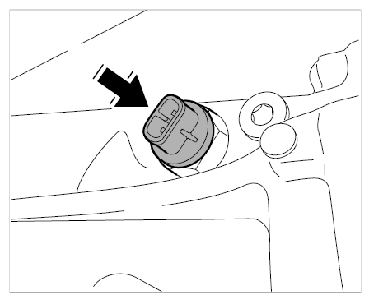

    Fig 1: Screwing Down Switch For Reversing Light
    G09830929Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect connector on switch for reversing light until connector is felt to engage.

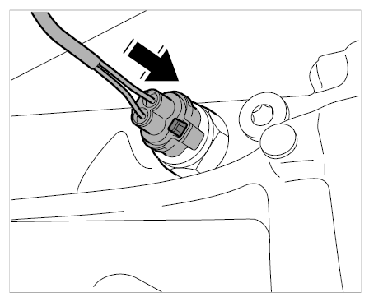

    Fig 2: Connecting Connector To Switch For Reversing Light
    G09830930Courtesy of PORSCHE CARS NORTH AMERICA, INC.
