Installing Auxiliary Brake Light

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the connector onto the auxiliary brake light -Arrow A-  until the locking lug -B-  is felt to engage.

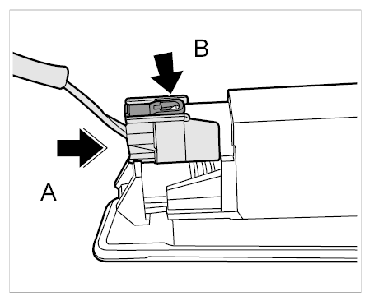

    Fig 1: Connecting Connector On Auxiliary Brake Light
    G09830919Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install auxiliary brake light.
    1. 2.1. Guide the connector side of the auxiliary brake light into the opening -Arrow A-  .
    2. 2.2. Push the auxiliary brake light in evenly on both sides -Arrows B-  until the locking lugs -a-  engage securely.

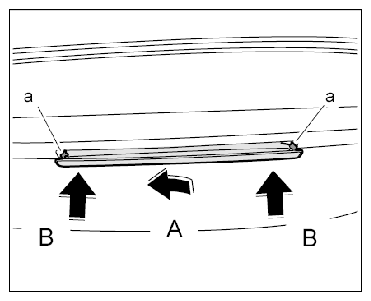

      3. Fig 2: Installing Additional Brake Light
      G09830920Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Installing left air guide
    1. 3.1. Remove the remains of the old double-sided adhesive tape strips -a-  and stick on strips of new double-sided adhesive tape.
    2. 3.2. Insert the air guides -Arrow A-  and fold them up -Arrow B-  .
    3. 3.3. Insert the clip -2-  and press in the screw-in pin -1-  (-Arrow C-  ).

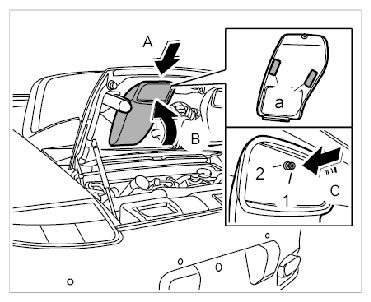

    Fig 3: Installing Left Air Guide
    G09830921Courtesy of PORSCHE CARS NORTH AMERICA, INC.
