Installing Main Light Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. -A-  Insert the light switch connector until it is felt to engage.
  2. -B-  Push in the light switch to its limit and turn the rotary knob anti-clockwise.

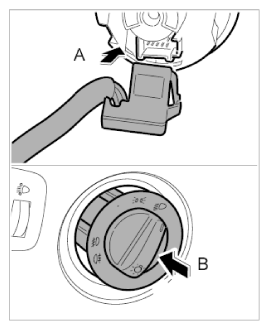

    3. Fig 1: Plugging In Connector
    G09830662Courtesy of PORSCHE CARS NORTH AMERICA, INC.
