Installing Rear Closing Panel

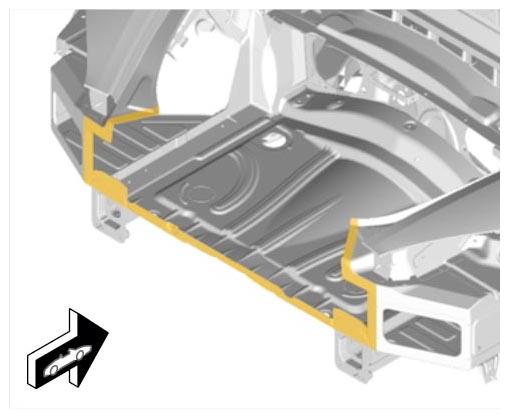

  1. Apply adhesive.
    G10023294Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit rear closing panel.

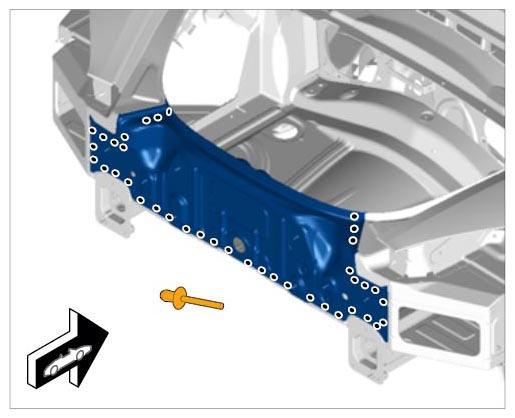

  3. Rivet in rear closing panel. → BLIND RIVET 999.190.228.01
    G10023295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
