Removing Rear Spoiler

Information

• The rear spoiler extends at speeds of approximately 120 km/h (75 mph) and retracts again at approx. 80 km/h (50 mph)  .
• The rear spoiler reduces the drag and, particularly at higher speeds, reduces the rear-axle lift  .
• The warning lights illuminate for a lamp check when the ignition is switched on. The warning lights in the instrument panel and the on-board computer light up if the rear spoiler does not extend or reach its end position  .

1. Switch on ignition and actuate switch for extending the rear spoiler.
2. Open the rear lid.
3. Unscrew fastening screws -1-  .
   1. Fastening screws for upper part of rear spoiler
   2. Upper part of rear spoiler
4. Pull upper part of rear spoiler -2-  off towards the rear.

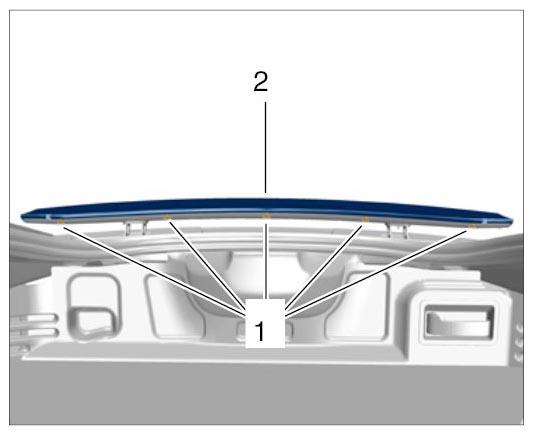

Fig 1: Removing Upper Part Of Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Screw off fastening nuts -3-  .
   1. 3  - Fastening nut for lower part of rear spoiler
   2. 4  - Lower part of rear spoiler

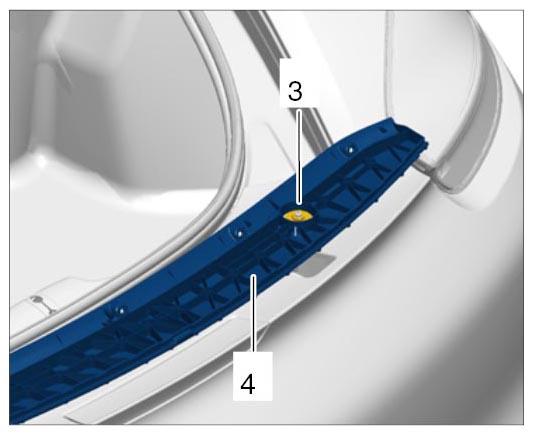

      Fig 2: Removing Lower Part Of Rear Spoiler

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
