Removing Front Apron

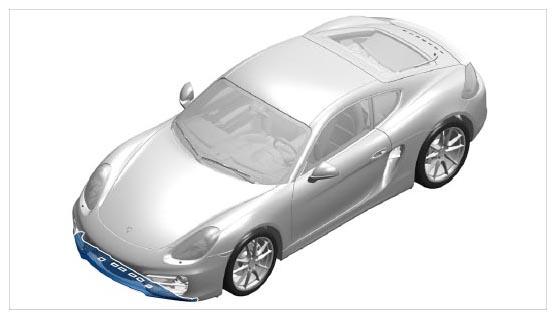

Fig 1: Identifying Front Apron Position
G10027199Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release locking lugs on the inside of the front apron -arrow A-  and pull off front apron -arrow B-  .

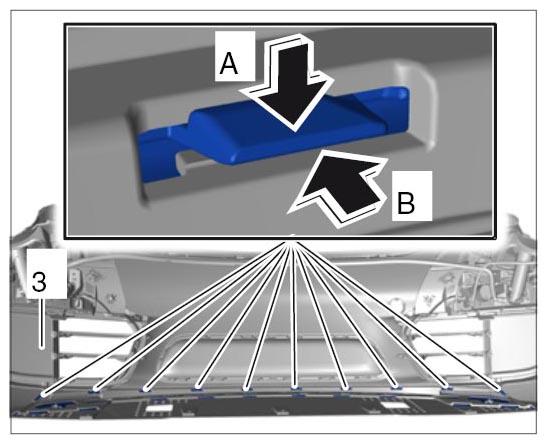

    Fig 2: Releasing Locking Lugs
    G10027200Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove front apron -1-  .

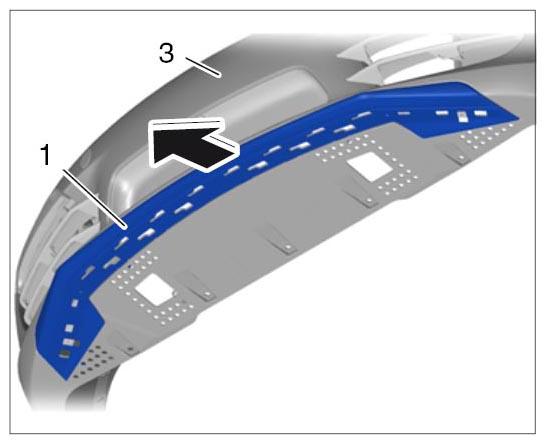

    Fig 3: Removing Front Apron
    G10027201Courtesy of PORSCHE CARS NORTH AMERICA, INC.
