Installing Inner Side Section

  1. Install inner side section and check that it fits perfectly. Check gap dimensions. → 5X00IN41 GAP DIMENSIONS .

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive  .
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed  .
    • Do not begin bonding work until all materials and tools necessary for later repair work are available  .

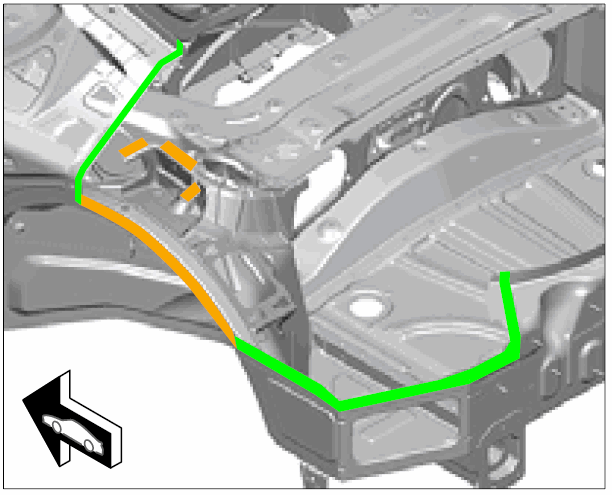

  2. Apply adhesive to the marked areas. → Application depth: 3.0 mm

    Working with body structural adhesive → 5X00IN41 GAP DIMENSIONS .

    G00540091Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Red Plug-welding/apply a full weld using inert gas without bonding
    Green Resistance spot-welding + bonding
    Orange Resistance spot-welding

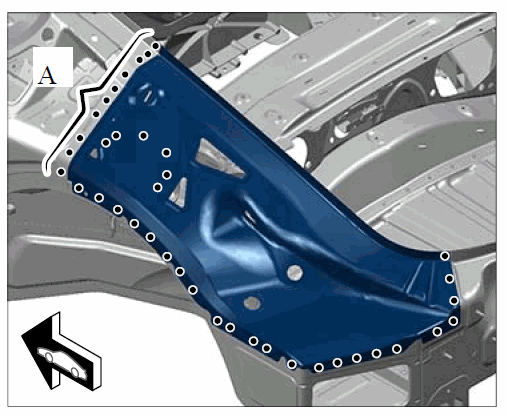

  3. Resistance spot-weld the inner side section.
    G00540088Courtesy of PORSCHE CARS NORTH AMERICA, INC.
