Installing Steering Wheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always observe the correct tightening torques!
Wheels straight ahead and observe previously applied markings!
Airbag unit must lock with an audible click! Check by pulling at airbag unit!
Always replace the multiple-tooth screw!
Observe correct tightening torque → 4X00IN TIGHTENING TORQUES FOR STEERING

Installation is performed in the reverse order to removal.
When positioning the steering wheel, make sure that the marking -2- between the steering wheel and steering column is aligned.

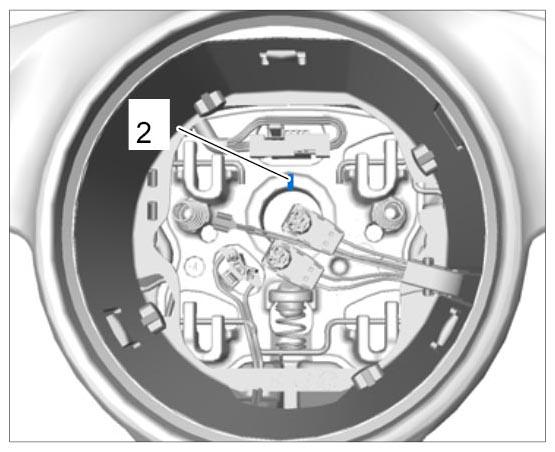

Fig 1: Aligning Steering Wheel And Steering Column Along Marking
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the airbag unit before installation
- Is the compression spring -1- positioned correctly (compression spring seating in spring guide)?
- When you slide the securing clip -2- up evenly (against the spring force) and then let it go, the securing clip must be pressed down again evenly.

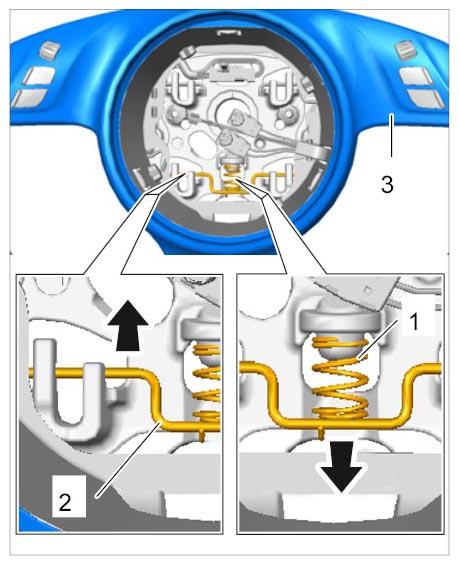

  Fig 2: Checking Compression Spring
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
