Installing Reflector Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

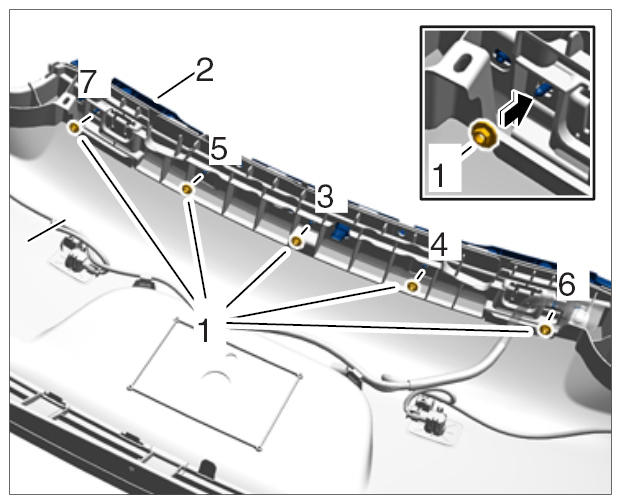

Position reflector cover -2- on the rear apron and screw in fastening nuts -1- in the sequence 3, 4, 5, 6, 7 using Tightening torque 4 Nm +0.5 Nm .

Fig 1: Installing Reflector Cover And Bolts In Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

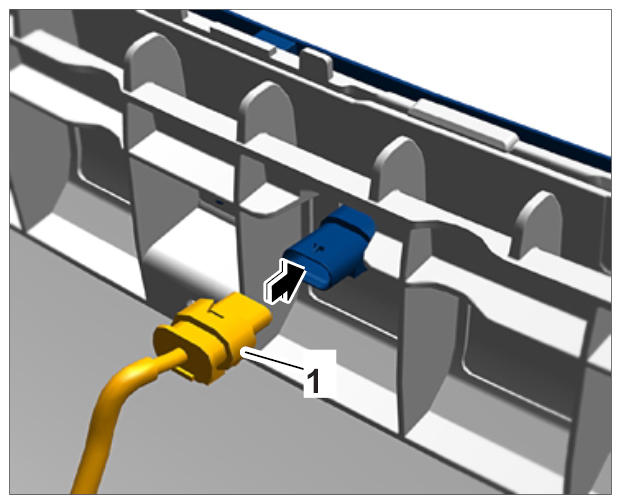

Plug in electric plug connection -1- until it engages securely.

Fig 2: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
