Removing Light Bulb For Parking Light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The light bulb for the parking light is installed in the auxiliary headlight.

  1. Unscrew the two fastening screws -1-  for the light bulb.
    Fig 1: Removing Light Bulb
    G09999221Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully pull the light bulb out of the auxiliary headlight.
  3. Release -A-  and unplug electric plug connection.

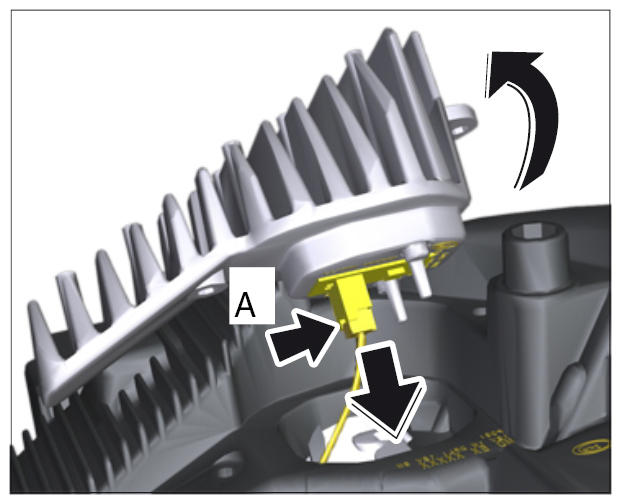

  4. Fig 2: Releasing Electric Plug Connection
    G09999222Courtesy of PORSCHE CARS NORTH AMERICA, INC.
