Installing Main Headlight Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

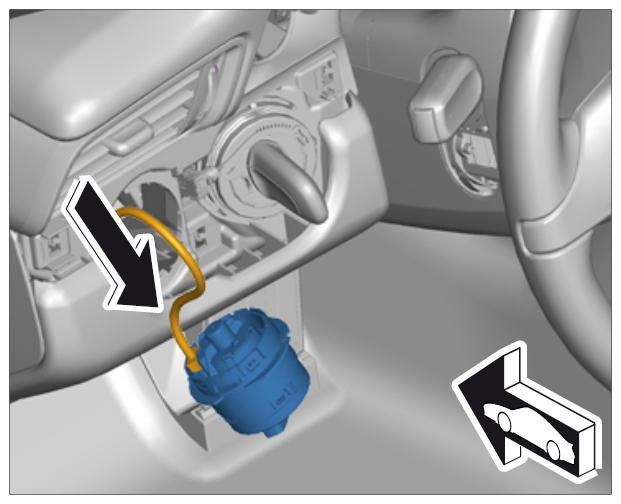

Connect plug connection -arrow- .

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the plug connection is seated securely.

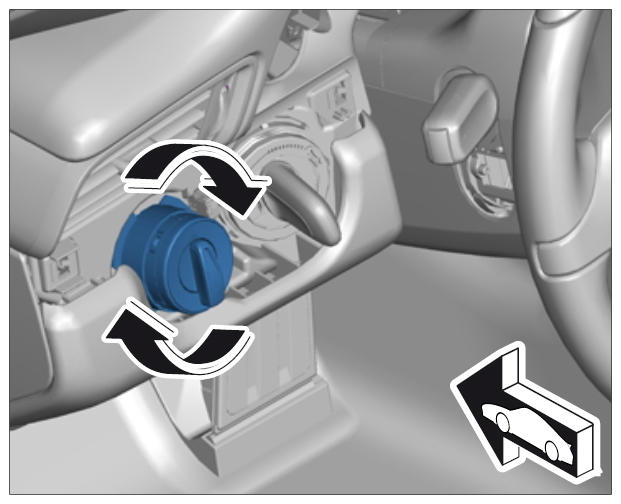

Insert main headlight switch into the cut-out and lock it by turning it -arrows- .

Fig 2: Installing Main Headlight Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Perform a function test.
