Installing Front Brake Calliper

Information

• Replace brake calliper fastening screws each time they are removed  .

1. Fit the brake calliper in reverse order to removal.

   Use new fastening screws -arrows-  .

   Observe different screw lengths (PET).

   Tightening Torque 85 Nm (63 ft. lbs.)

   Brake line on brake calliper Tightening Torque 16 Nm (12 ft. lbs.)

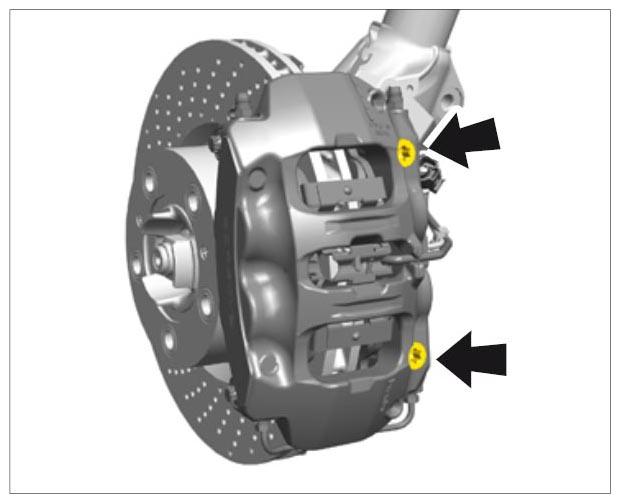

   Fig 1: Locating Fastening Screws On Brake Caliper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
