Removing Control Unit For Parking Brake

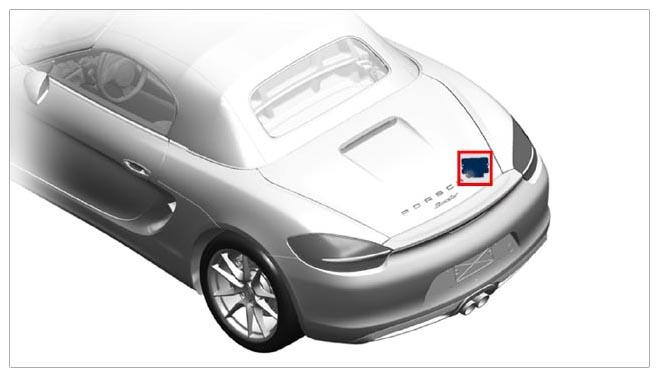

Fig 1: Identifying Control Unit Installation Position For Parking Brake

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Screw off fastening nuts -2-  .

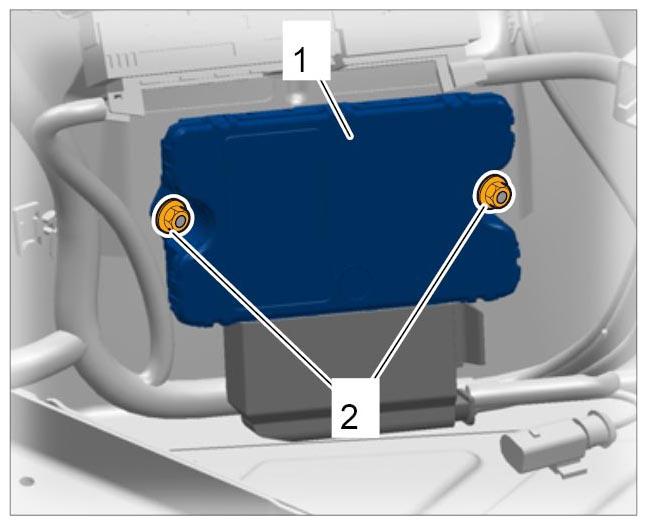

   Fig 2: Identifying Parking Brake Control Unit Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull parking brake control unit -1-  off studs.
3. Release electric plug connection on the parking brake control unit -1-  (-a-  ) and unplug it -A-  .

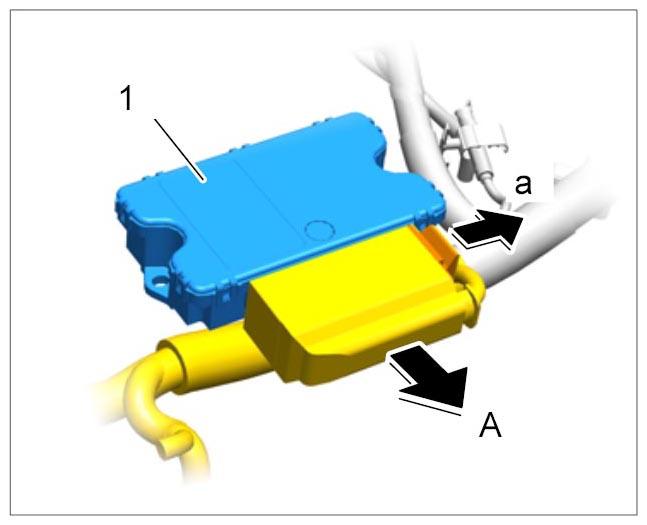

   Fig 3: Disconnecting Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
