Installing Control Unit For Parking Brake

  1. Connect electric plug connection to parking brake control unit -1-  (-A-  ) and slide in latch at the same time -a-  .
    Fig 1: Connecting Electric Plug Connection
    G10026635Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Place parking brake control unit -1-  on studs.

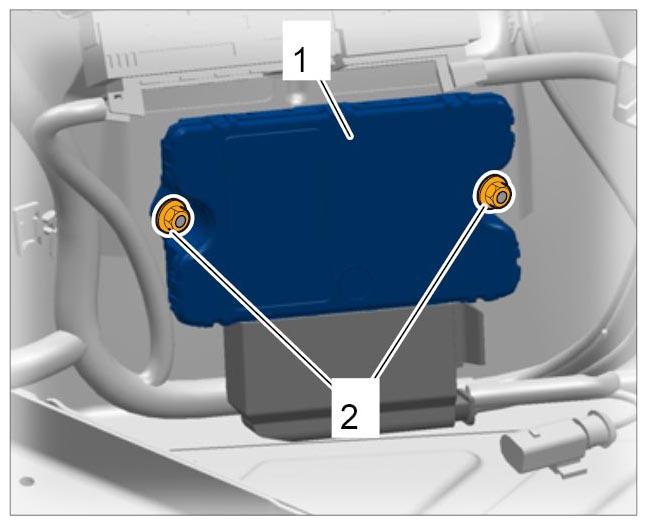

    Fig 2: Identifying Parking Brake Control Unit With Fastening Nuts
    G10026636Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Tighten fastening nuts -2-  . Tightening torque 4.5 Nm (3 ftlb.)
