Information On The Test Steps

Checking involves the following:

1. Visual inspection for surface changes in the brake disc friction surfaces and wear indicators. Indication of wear: Connected surface fracture > 1 cm²-arrow-  , without adding up smaller fractures → 465102 CHECKING FRONT PCCB BRAKE DISC (WEAR ASSESSMENT) .

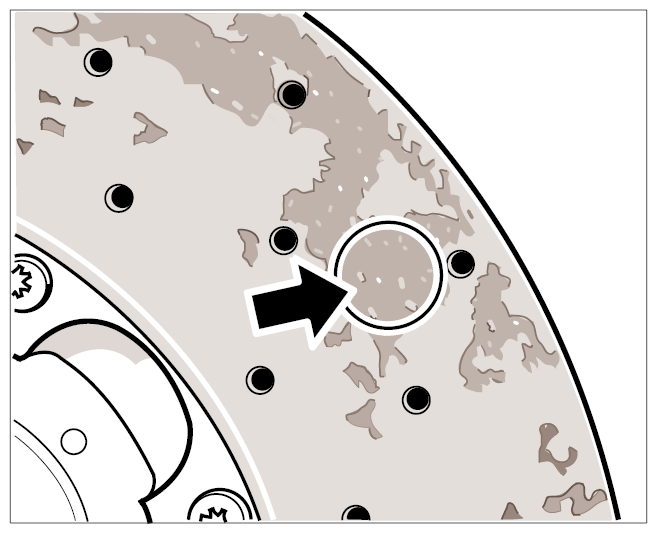

   Fig 1: Locating PCCB Brake Discs Surface Fracture

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check surface roughness (Rk) of brake discs (max. 80 μm permitted) since this affects braking comfort (noises), braking behavior/pedal pressure and brake-pad service life → 465102 CHECKING FRONT PCCB BRAKE DISC (WEAR ASSESSMENT) .

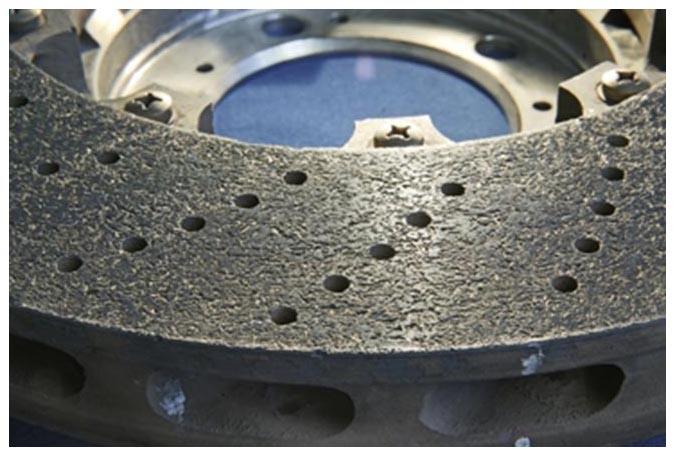

   Fig 2: Identifying PCCB Brake Disc Surface Roughness Area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Check brake discs for minimum thickness -X-  . The minimum brake disc thickness (e.g. Min. Th. 33.7 mm) is stamped on the brake disc hub → 465102 CHECKING FRONT PCCB BRAKE DISC (WEAR ASSESSMENT)  .

   Measure the brake disc thickness -X-  in the area of the outer or inner friction surface track -arrows-  at least three different points (-A, B, C-  ) offset by 120°.

   To do this, use a suitable micrometer or a brake disc gauge.

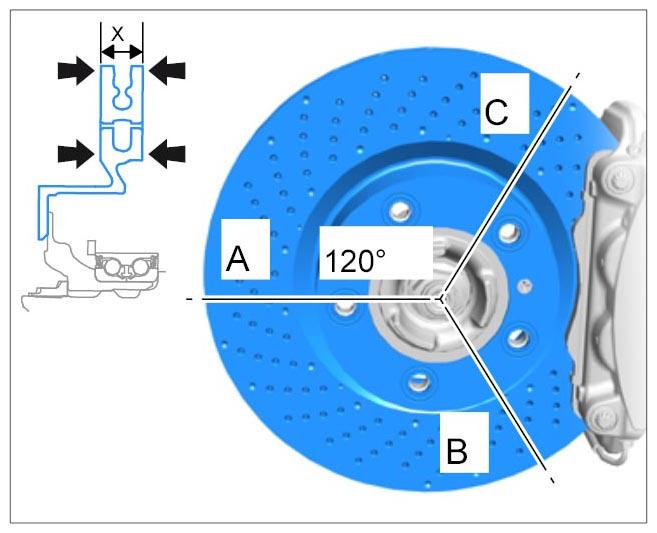

   Fig 3: Identifying PCCB Brake Disc Minimum Thickness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

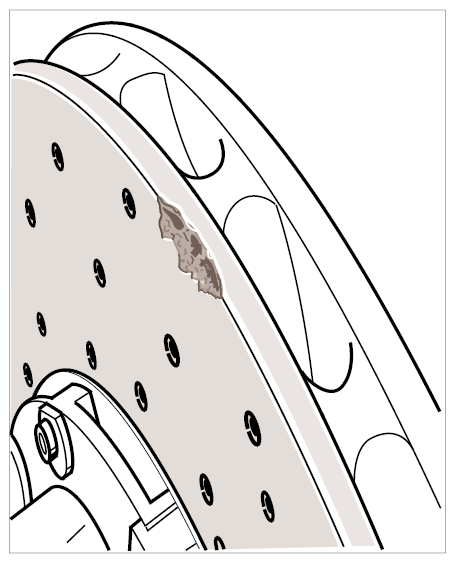

4. Check brake discs for edge damage -see illustrationFig 4- (damage due to improper use). → 465102 CHECKING FRONT PCCB BRAKE DISC (WEAR ASSESSMENT) .
   Fig 4: Identifying Edge Damage Area On PCCB Brake Disc

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
