Installing Luggage Compartment Lamp

  1. Plug in plug connection -arrow-  and check that it is seated securely.

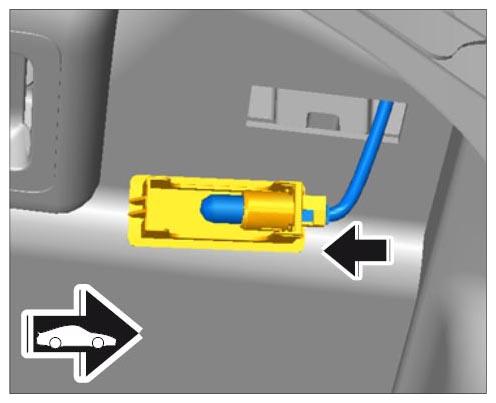

    Fig 1: Connecting Plug Connection (Shown On 991)
    G10028618Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit luggage compartment lamp in the luggage compartment trim panel and clip it in -arrow-  .

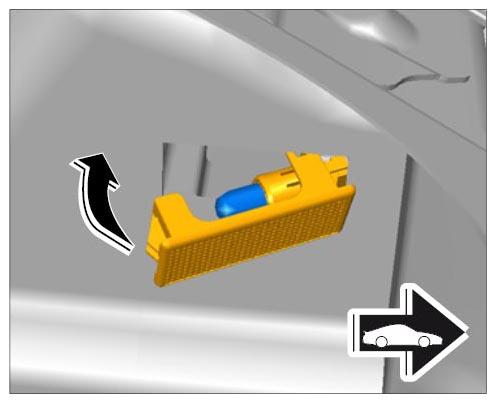

    Fig 2: Clipping Luggage Compartment Lamp (Shown On 991)
    G10028619Courtesy of PORSCHE CARS NORTH AMERICA, INC.
