Removing Wheel Electronics

The wheel electronics unit is located on the valve in the outer rim base.

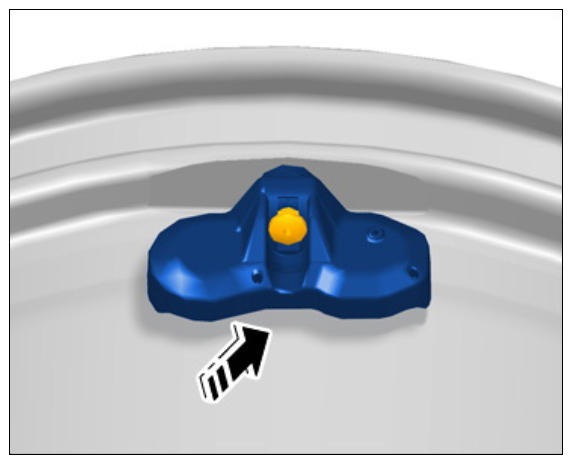

Fig 1: Removing Wheel Electronics Unit
G09807871Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo the fastening screw -1-  for the wheel electronics unit. If necessary counter in the bore at the valve foot using a suitable assembly pin, e.g. steel pin Ø approx. 1.8 mm.

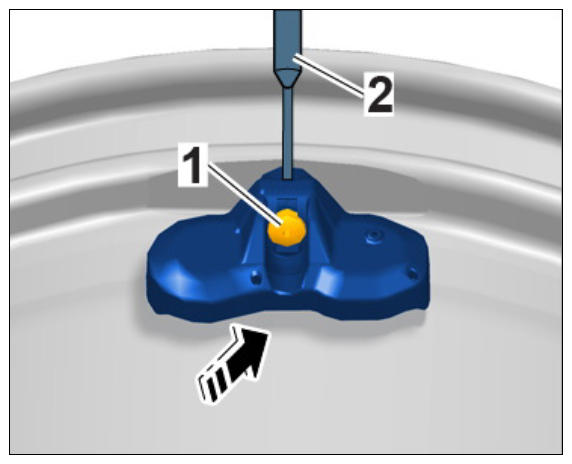

    Fig 2: Removing Wheel Electronics
    G09807872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Undo the union nut and take out the valve.
