Installing Front Lid Seal

Information

Before replacing, check the existing seal for signs of damage (areas torn, crushed, etc.). If there are signs of damage, the seal must be replaced.
The seal is pressed onto the flange without any additional sealants.
During installation, the seal must not come into contact with hot engine components or adjacent units. This can cause damage to the seal.

Install rear profile seal -1- .

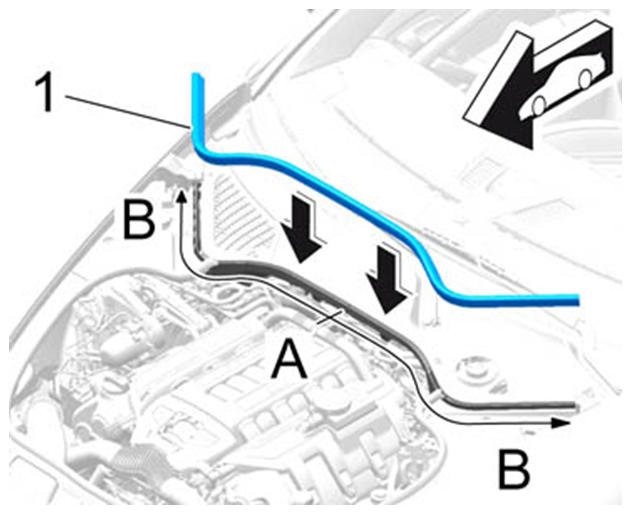

Fig 1: Installing Rear Profile Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Position rear profile seal -1- on the end plate.
2. 1.2. The side lip -2- is facing away from the direction of travel.

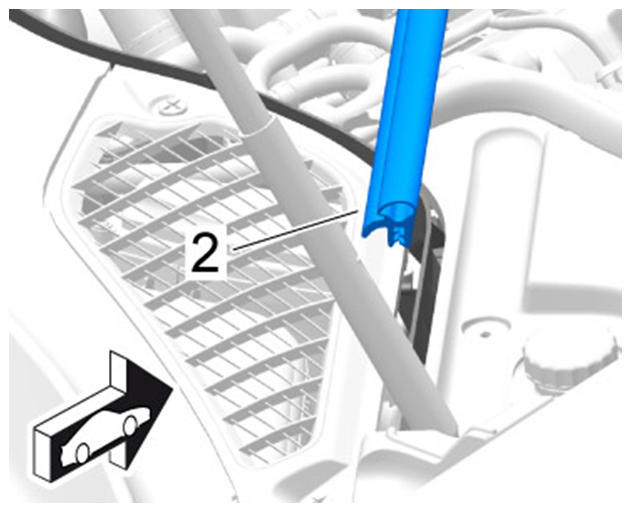

  Fig 2: Identifying Lip Facing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Align the rear profile seal so that it is centered on the plenum panel.
4. 1.4. Press the rear profile seal onto the cowl panel, starting at the center. -A-
5. 1.5. Press the rear profile seal on evenly from the bends to the ends. -B- The profile seal must not be stretched or deformed in the process.
6. 1.6. The two ends must reach the end of the cowl panel evenly on both sides.
7. 1.7. Press the foam corner pieces onto the rear profile seal.

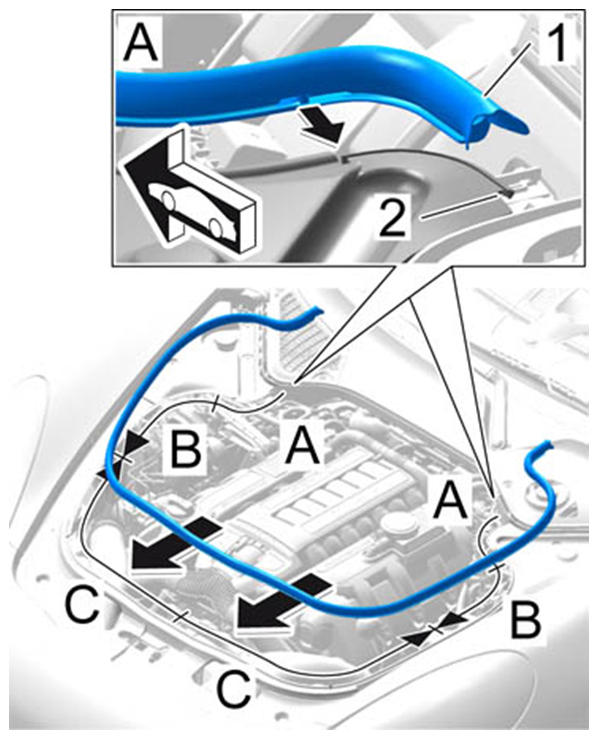

Install front profile seal -1- .
1. 2.1. Pull the ends of the front profile seal -1- over the retaining lugs -2- .
2. 2.2. Press the lugs, which are in the groove on the front profile seal, into the cut-outs in the flange -arrow- . -A-
3. 2.3. Press on the front profile seal starting from the ends to the points ->|<- and onto the flange. -B-
4. 2.4. Press the remaining center section of the front profile seal evenly onto the flange. -C- The front profile seal must not be stretched or deformed in the process.
Check that the two profile seals are fitted correctly.
1. 3.1. The profile seals must not be stretched or deformed.
2. 3.2. The bends in the profile seals must fit securely on the flanges.
3. 3.3. The ends of the front profile seal must not become detached from the retaining lugs.
