Removing Cowl Panel Cover

  1. Remove right section of cowl panel cover -1-  .
    1. 1.1. Open fixing clips -2-  by turning them 90° (-arrow A-  ).
    2. 1.2. Lift up section of cover at the front edge and remove it -arrow B-  .

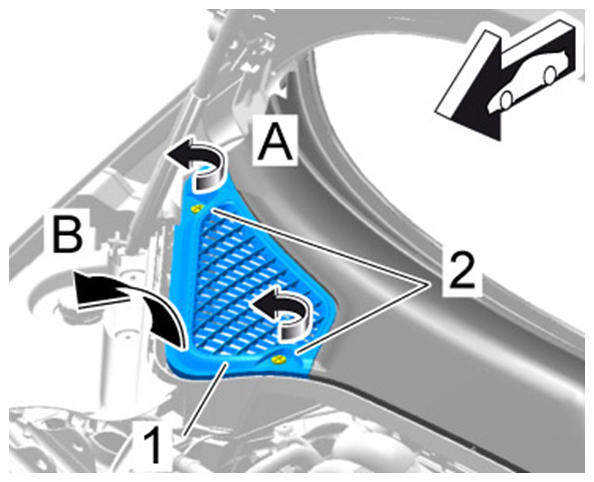

      Fig 1: Cowl Panel Cover Component Location
      G09809263Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Open fixing clips -2-  for cowl panel cover -1-  by turning them 90° (-arrow-  ).

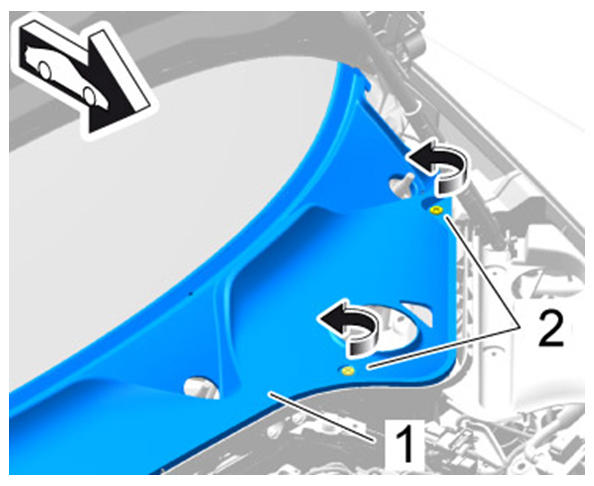

    Fig 2: Loosening Cowl Panel Cover Mounting
    G09809264Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove cowl panel cover.
    1. 3.1. Carefully unclip the cowl panel cover -1-  at the rear edge using a plastic wedge -arrow A-  .
    2. 3.2. Remove cowl panel cover -arrow B-  .

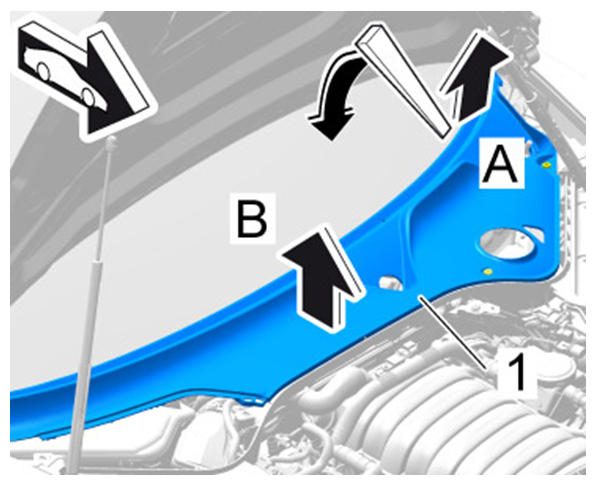

      Fig 3: Removing Cowl Panel Cover
      G09809265Courtesy of PORSCHE CARS NORTH AMERICA, INC.
