Removing Rear Part Of Wheel Housing Liner

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

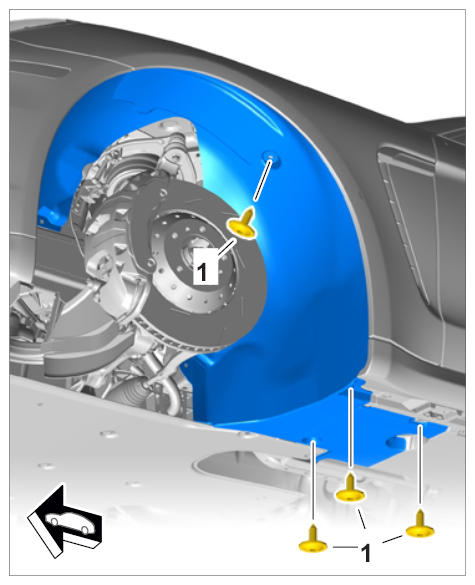

1. Unscrew fastening screws -1-  for inner wheel housing liner and underbody (long version).
   Fig 1: Wheel Housing Liner Component Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening screws -1-  for inner wheel housing liner and underbody.
   Fig 2: Removing Mounting Screws For Inner Wheel Housing Liner And Underbody

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

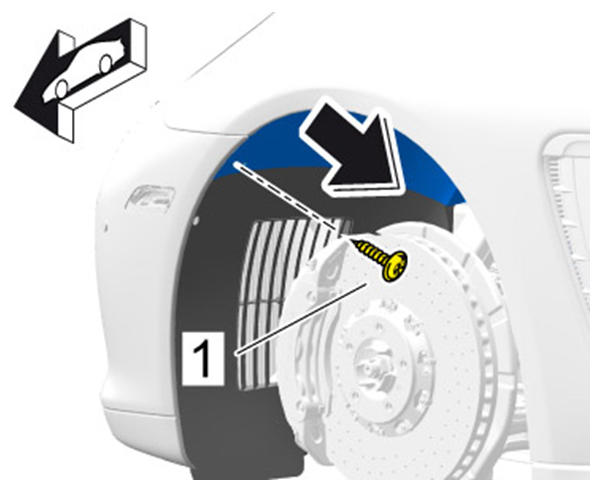

3. Unscrew fastening screw -1-  on the outside of the front apron.
   Fig 3: Removing Mounting Screws On Outside Of Front Apron

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

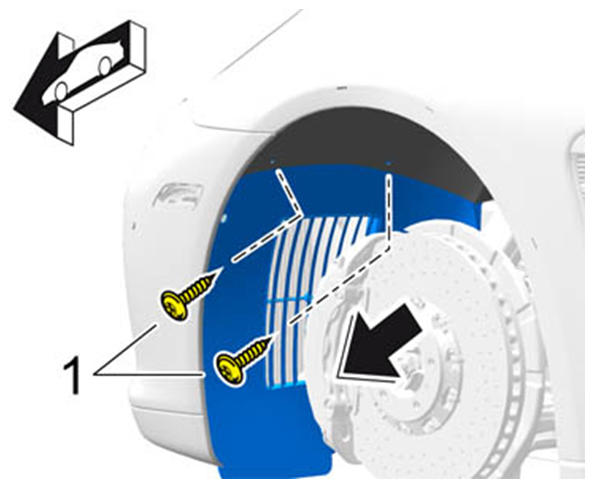

4. Unscrew fastening screws -1-  securing rear part of wheel housing liner to front part of wheel housing liner.
   Fig 4: Removing Fastening Screws Securing Rear Part Of Wheel Housing Liner To Front Part Of Wheel Housing Liner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

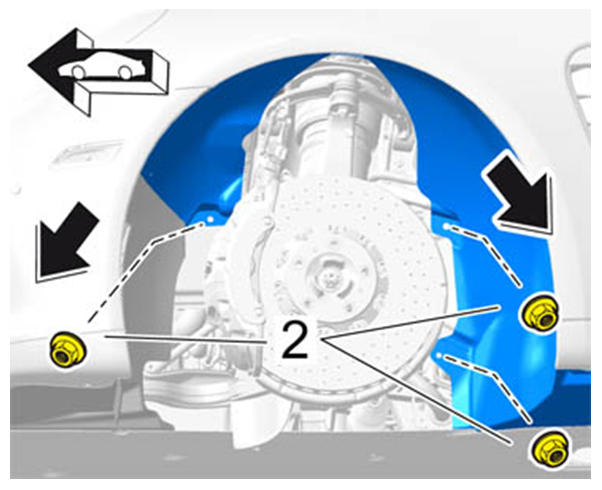

5. Unscrew plastic nuts -2-  on the inside of the wheel housing liner.
   Fig 5: Removing Plastic Nuts On Inside Of Wheel Housing Liner

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove rear part of wheel housing liner.
