Removing Sliding-Roof Panel

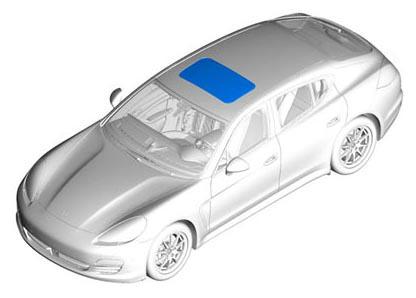

Fig 1: Identifying Installation Position For Sliding Roof

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move sliding-roof panel -1- to the final raised position.

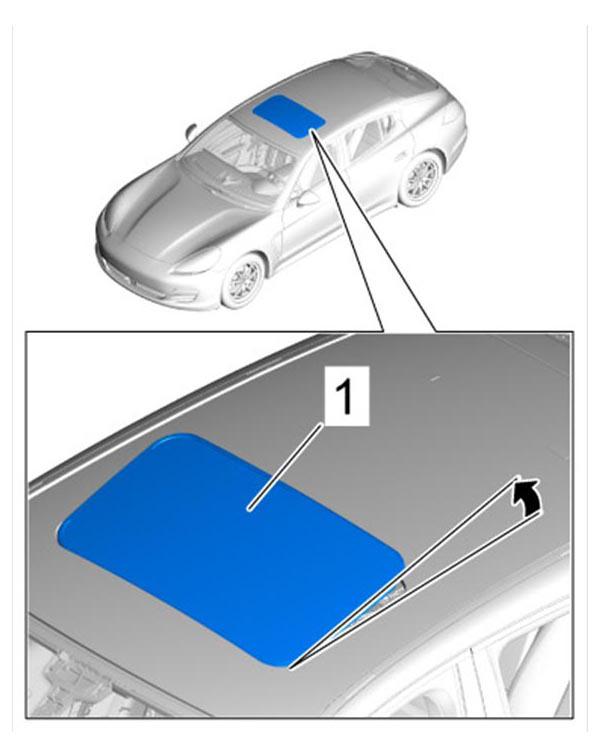

Fig 2: Opening Sliding-Roof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Slide fabric lining back completely.
Unclip bellows.
1. 2.1. Unclip bellows -1- at the top and bottom in the front area towards the center of the vehicle.

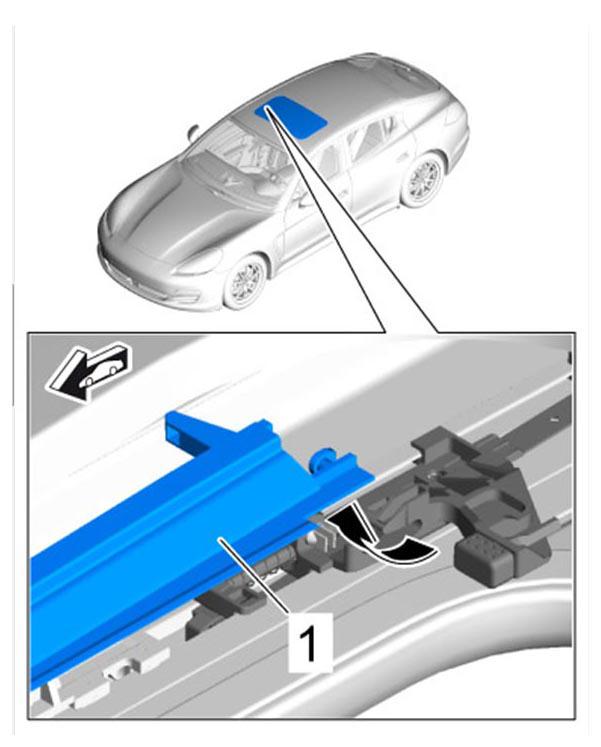

  Fig 3: Unclipping Front Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unhook bellows.
1. 3.1. Unhook bellows at the top -1- in the rear area backwards out of the retaining pivot -2- .

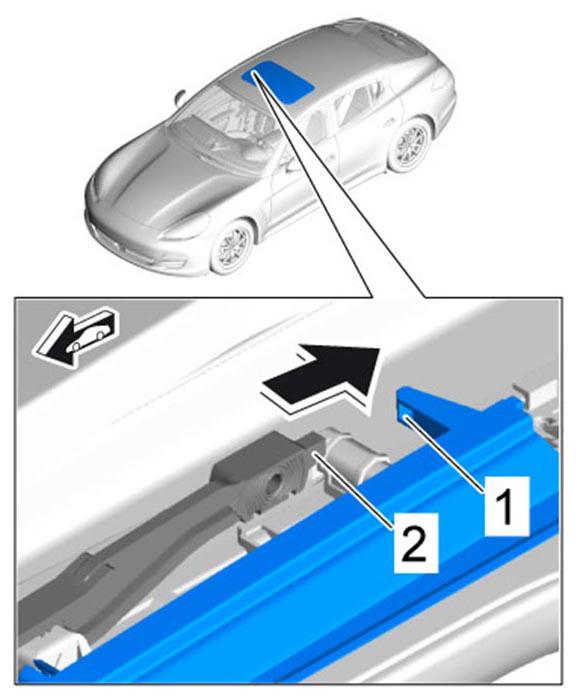

  Fig 4: Unhooking Bellows
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Push bellows -1- at the bottom forwards in the rear area.

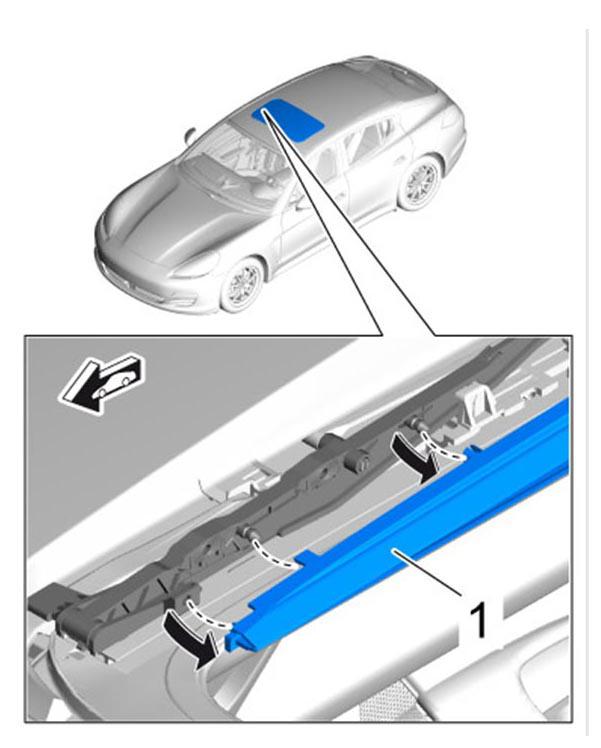

  Fig 5: Removing Bellows At Bottom
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Remove bellows.
Unscrew fastening screws -2- for sliding-roof panel -1- .

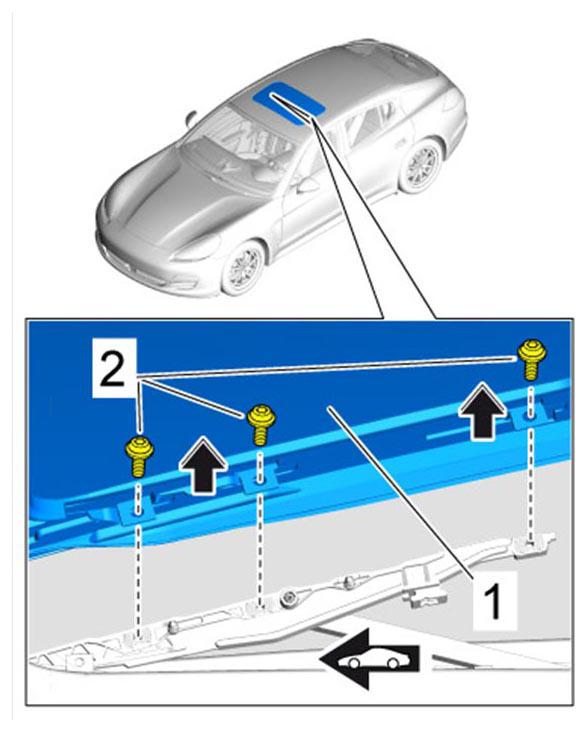

Fig 6: Loosening Panel Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift off sliding-roof panel -1- .

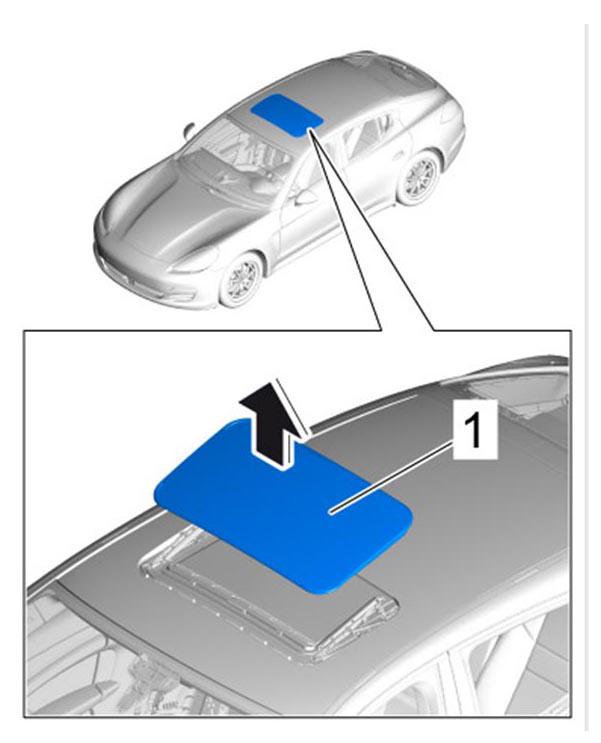

Fig 7: Removing Sliding-Roof Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
