Installing Control Unit For Memory Seat Adjustment

  1. Position electric plug connections -3, 4 and 5-  and plug them in.

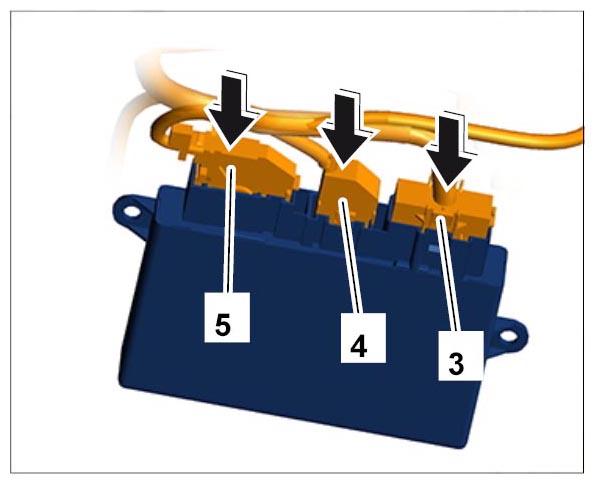

    Fig 1: Connecting Electric Plug Connections
    G09812757Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position the control unit and secure the line to the holder using a new tie-wrap.
  3. Screw in and tighten fastening screws -1-  .
  4. Move the seat to the desired position.

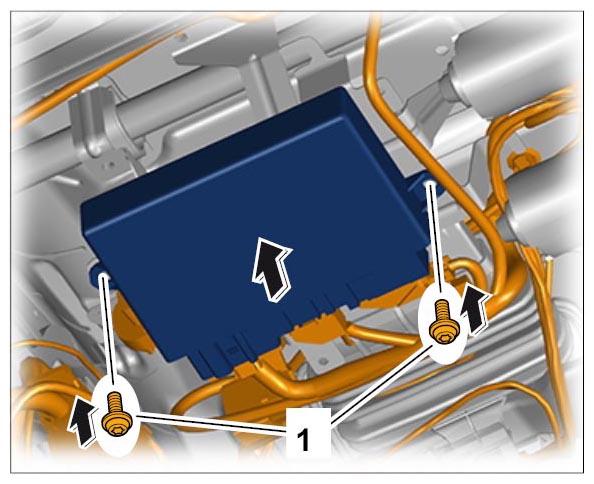

    5. Fig 2: Positioning Control Unit
    G09812758Courtesy of PORSCHE CARS NORTH AMERICA, INC.
