Installing Motor For Seat Adjustment

Insert the short drive shaft -1- into the transmission mount by turning it slightly -2- .

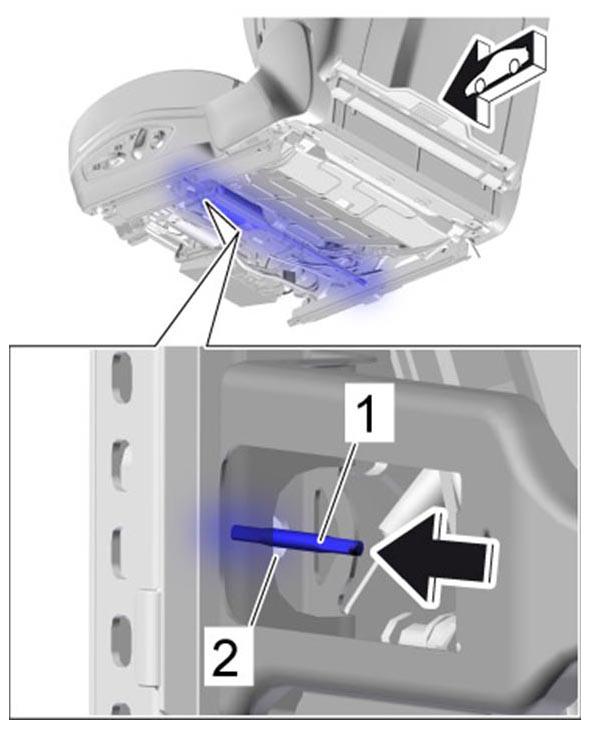

Fig 1: Installing Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the long drive shaft -2- into the transmission mount by turning it slightly -arrow A- .

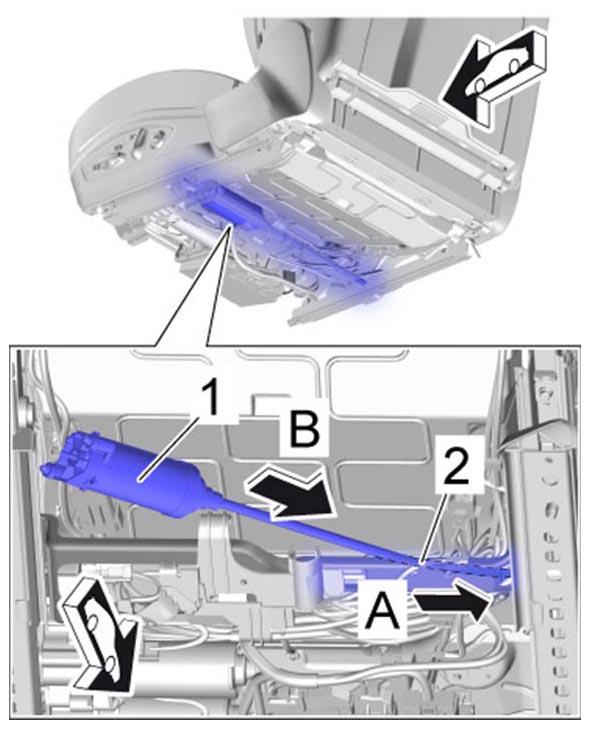

Fig 2: Pushing Motor For Seat Adjustment Onto Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When installing the motor for seat adjustment, make sure the two seat rails are in the same position.
Push motor for seat adjustment -1- with the sleeve onto the long drive shaft -2- by turning it slightly -arrow A- .
Plug in connector -3- on motor for seat adjustment -1- (-arrow A- ) until it engages securely.
Slide motor for seat adjustment -1- under the holder -2- (-arrow B- ).
Information

When installing the motor for seat adjustment, make sure the two seat rails are in the same position.

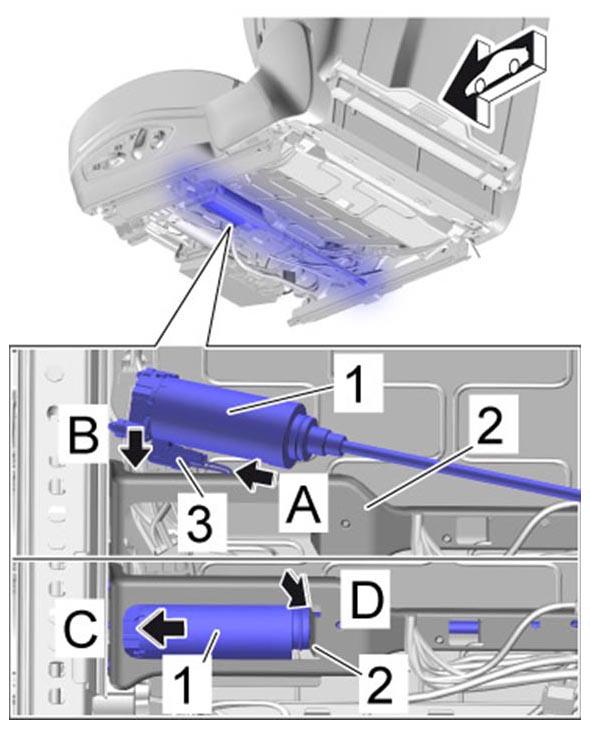

Fig 3: Pressing Motor For Seat Adjustment Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push motor for seat adjustment -1- onto the short drive shaft by turning it slightly -arrow C- .
Press motor for seat adjustment -1- into the holder -2- at the boot -arrow D- .
Clip in the sleeve of the long drive shaft -2- for the motor for seat adjustment -1- at the holder.

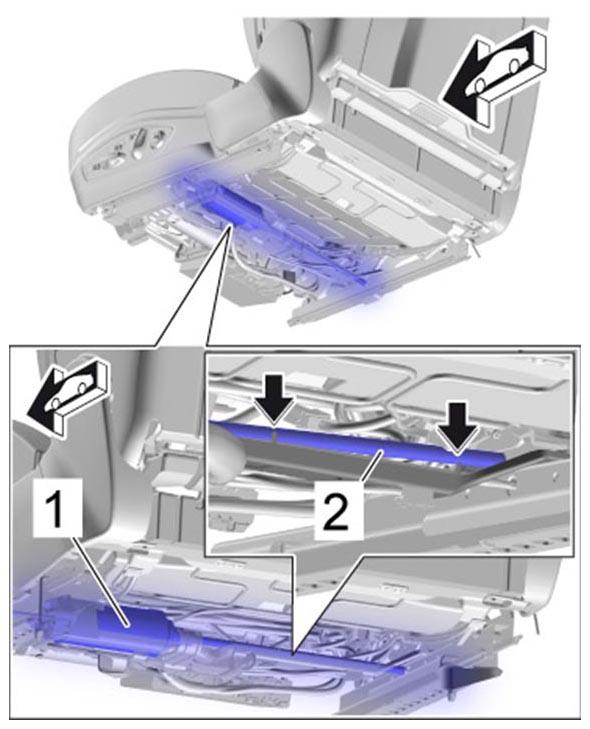

Fig 4: Clipping In Sleeve Of Shaft Of Seat Adjustment Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
