Installing Side Cushion

Information

Check that all fixing clips are positioned fully and correctly.

Check that the fixing clips are not bent or broken.

Replace damaged or missing clips with new ones.

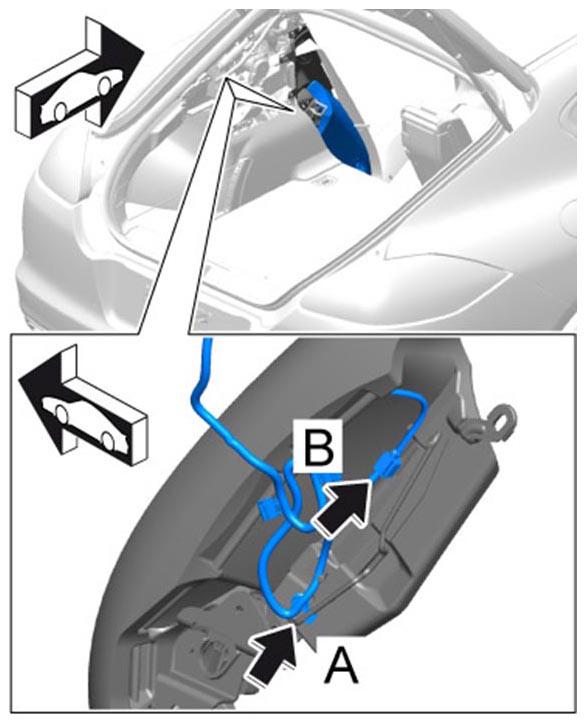

1. Secure plug connection.
   1. 1.1. Clip in wire harness -A-  .
   2. 1.2. Insert plug connection until it engages securely -B-  .
   Fig 1: Connecting Plug Connection
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

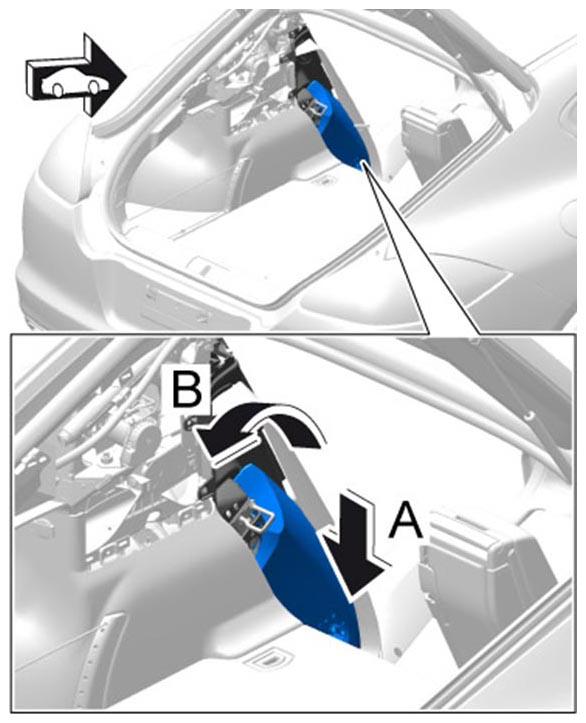

2. Clip in backrest side panel -A-  and swivel it into position -B-  .
   Fig 2: Clipping Backrest Side Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

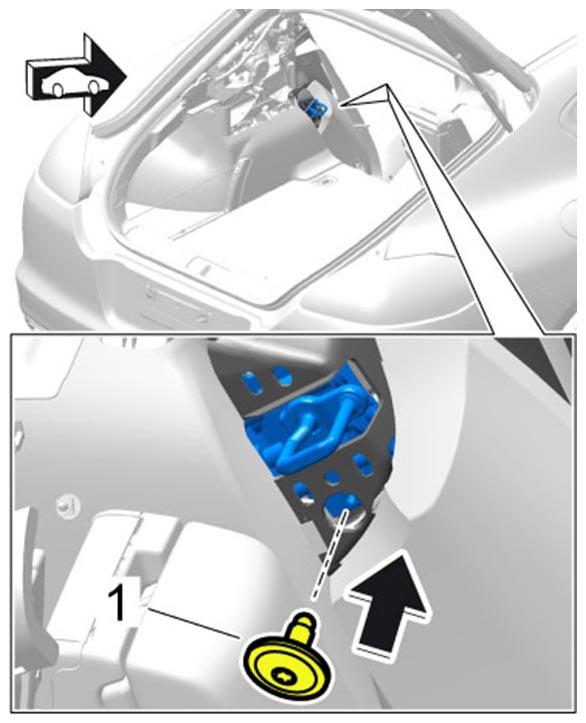

3. Tighten fastening screw -1- → Tightening torque: 10 Nm (7.5 ftlb.)+/-1 Nm (+/-0.5 ftlb.)  on backrest side panel.
   Fig 3: Securing Backrest Side Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

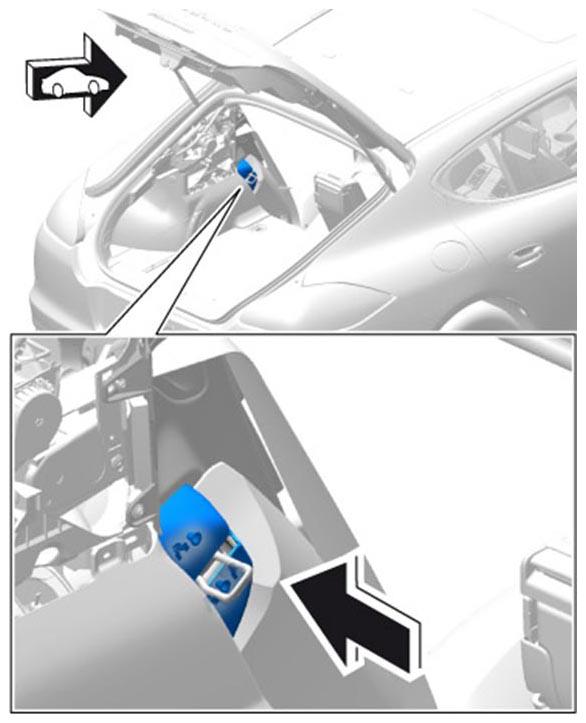

4. Clip in cover.
   Fig 4: Clipping Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
