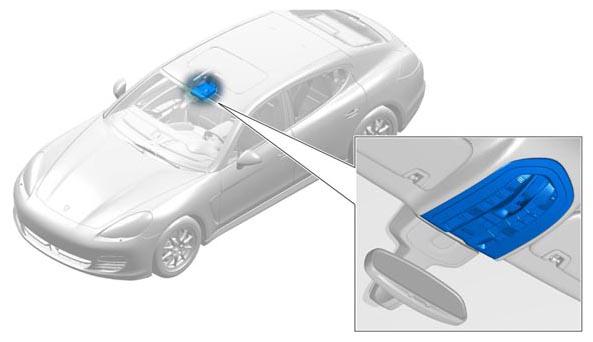

Removing Front Roof Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Switch off ignition and remove remote control (hand-held transmitter).

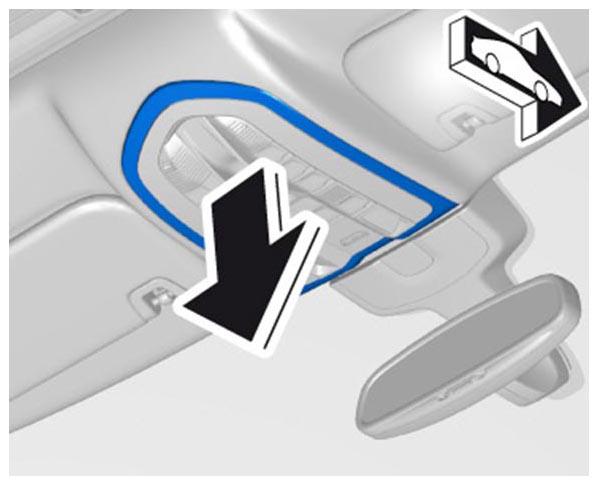

- Unclip cover for headliner.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

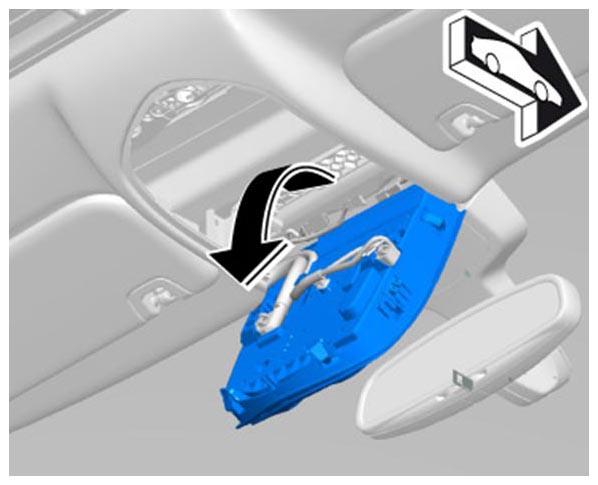

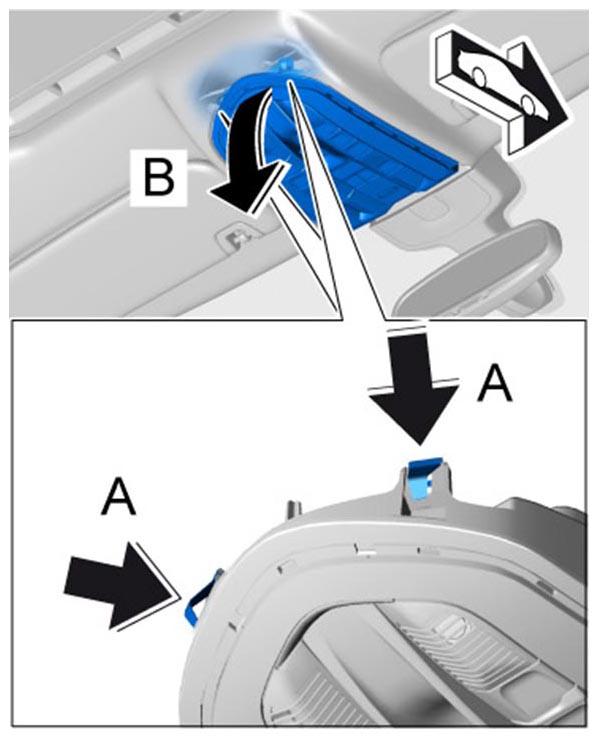

- Unclip headliner at the two side cut-outs -A-
and swivel it downwards -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Lever headliner off towards the rear.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

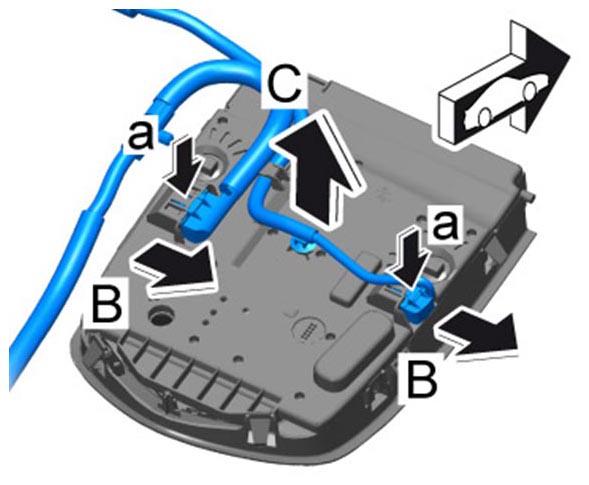

- Disconnect wire harness.
- 5.1. Release plug connections -a-
and pull them off -B-
.
- 5.2. Unclip fixing clip for wire harness using the disassembly tool Nr.21
(-C-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
