Removing Front Air Grille

Information

The number of plug connections can vary, depending on equipment.

1. Disconnect plug connections.
2. Unclip wire harness from the catches -1-  .

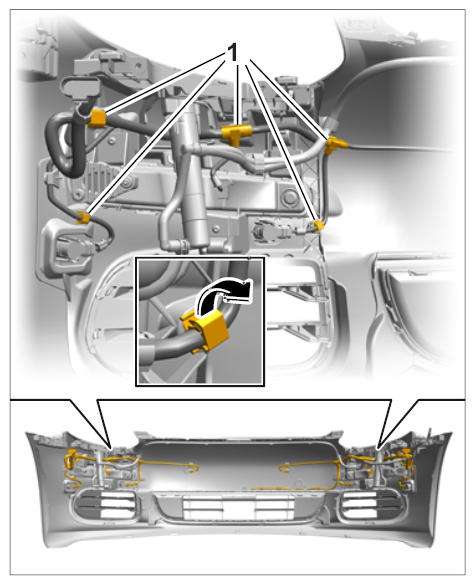

   Fig 1: Disconnecting Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unclip vanes.
   1. 3.1. Release locking lugs -1-  (-arrows-  ).
   2. 3.2. Remove vanes.

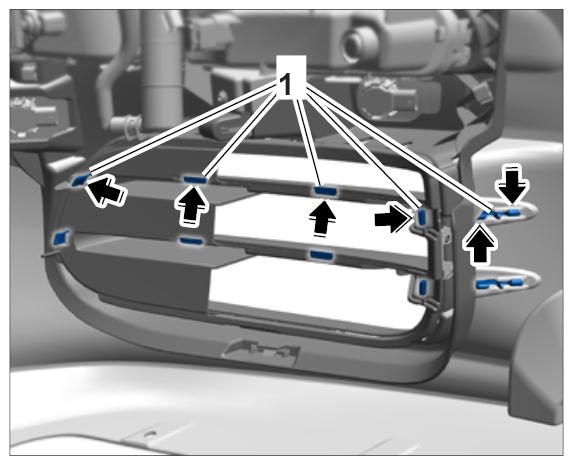

   Fig 2: Locating Vanes

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Unclip air grille using a suitable tool.

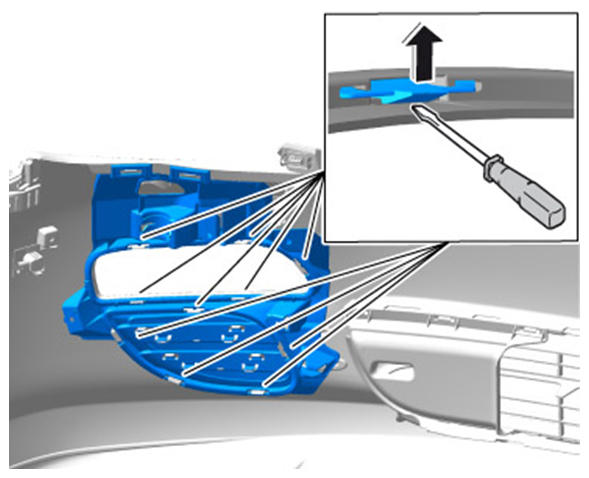

   Fig 3: Unclipping Air Grille

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove air grille.
