Preparing Connection Areas Of Body For Installing Outer Side Member

  1. Prepare connection areas for bonding.

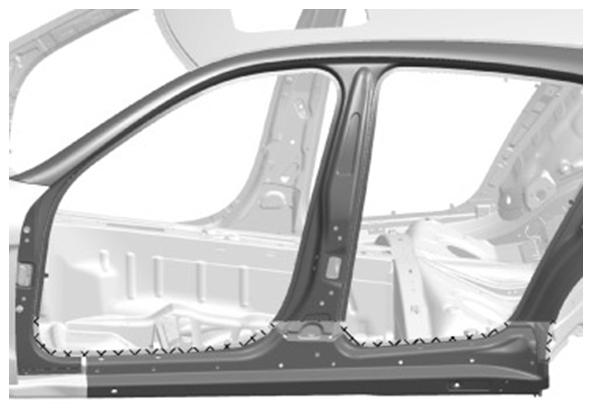

    Fig 1: Preparing Outer Side Member For Bonding (1 Of 2)
    G09809566Courtesy of PORSCHE CARS NORTH AMERICA, INC.

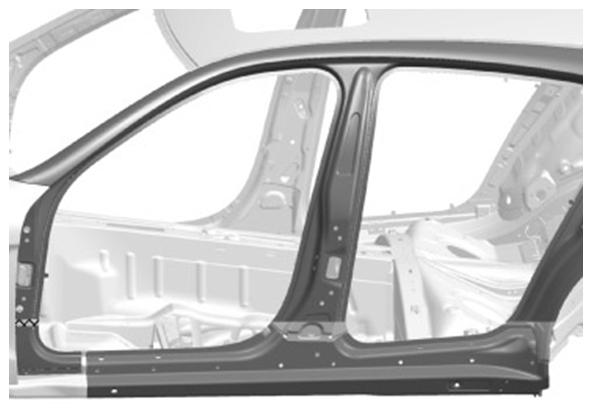

    Fig 2: Preparing Outer Side Member For Bonding (2 Of 2)
    G09809567Courtesy of PORSCHE CARS NORTH AMERICA, INC.
