Preparing Connection Areas Of Body For Installing Body Front Section

  1. Prepare connection areas for bonding.

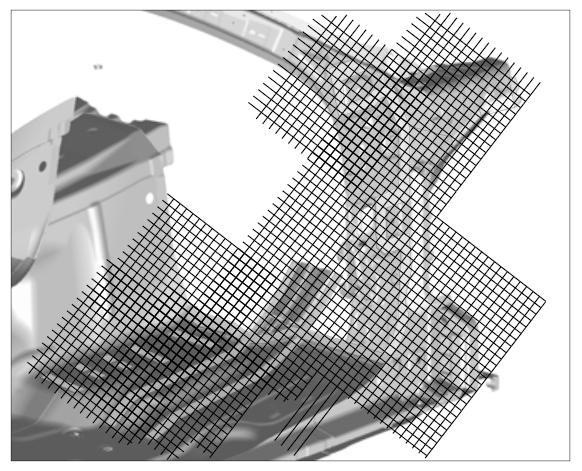

    Fig 1: Preparing Connection Areas Of Body For Bonding (1 Of 2)
    G09809299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

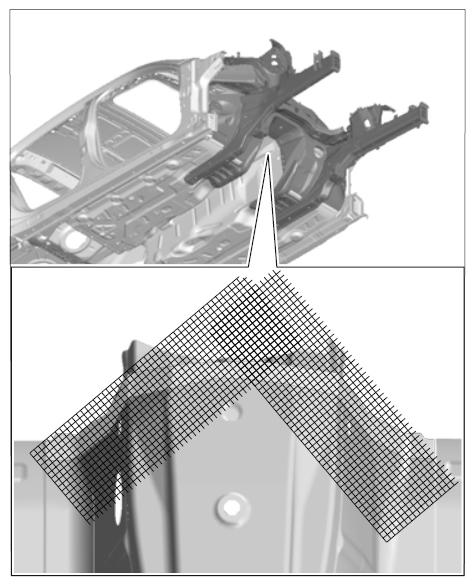

    Fig 2: Preparing Connection Areas Of Body For Bonding (2 Of 2)
    G09809300Courtesy of PORSCHE CARS NORTH AMERICA, INC.
