Preparing Connection Areas Of Body For Installing Side Member

  1. Prepare bonding and welding areas on the side member for bonding. → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE
    1. -A-  - Welding using inert gas
    2. -B-  - Resistance spot welding
    3. -C-  - Bonding and riveting

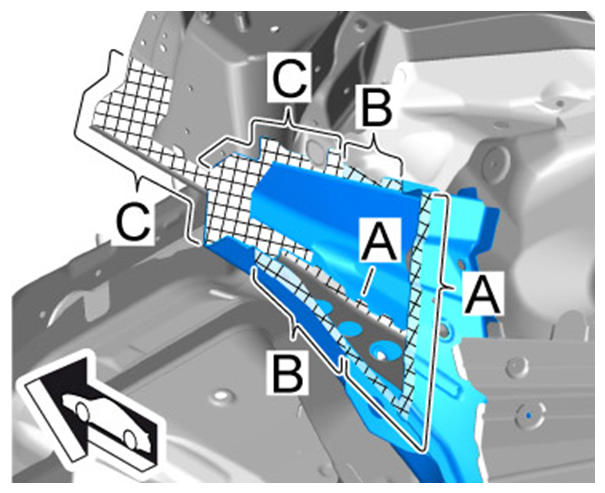

    Fig 1: Preparing Bonding Areas (Left)
    G09809226Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. -A-  - Welding using inert gas
    2. -B-  - Resistance spot welding
    3. -C-  - Bonding and riveting

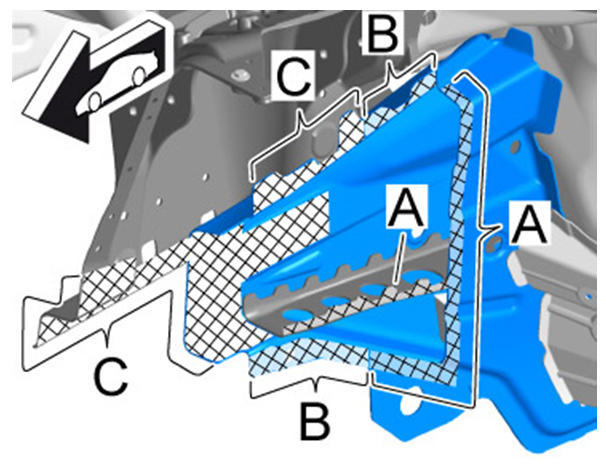

      4. Fig 2: Preparing Bonding Areas (Right)
      G09809227Courtesy of PORSCHE CARS NORTH AMERICA, INC.
