Gap Dimensions Of Front Wing

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

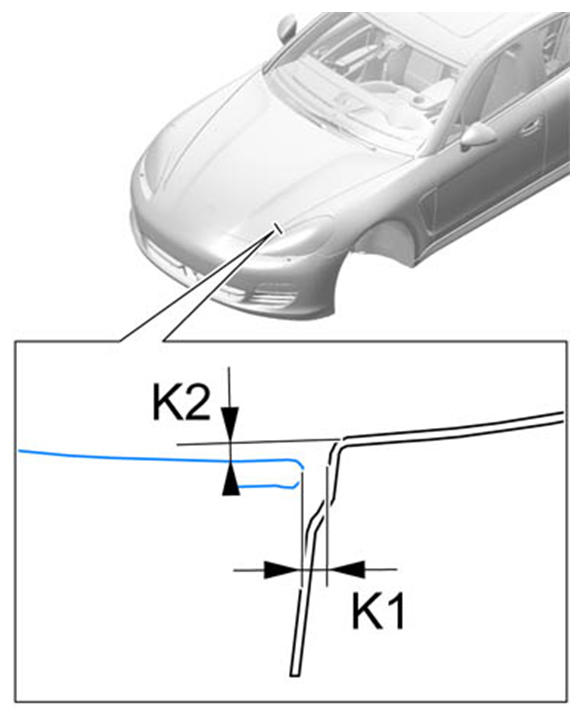

Lid to wing (K1)		Gap dimension	3.5 mm	+1 mm	-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Lid to wing (K2)		Gap dimension	-0.5 mm	1 mm	-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

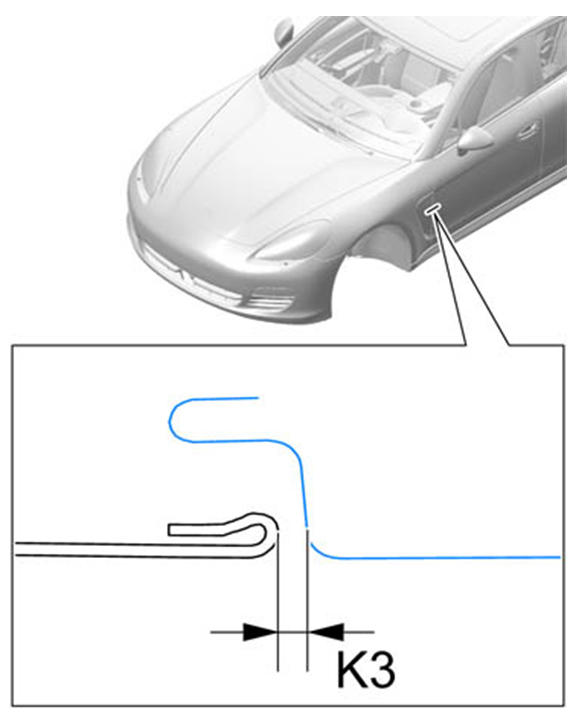

Wing to door (K3)		Gap dimension	4.5 mm	+1 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Wing to door (K3a)	Lowered only	Gap dimension	0 mm	-1 mm
Gap dimension

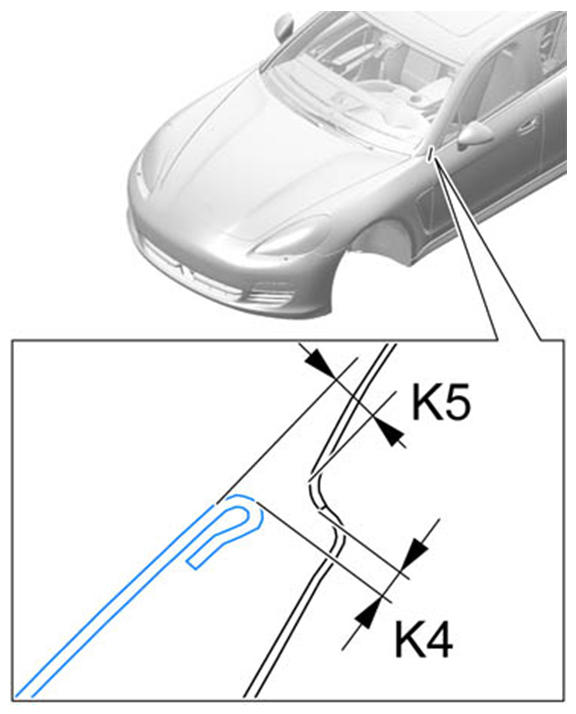

Wing to A-pillar (K4)		Gap dimension	4 mm	+1.5 mm	-0.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Wing to A-pillar (K5)		Gap dimension	1 mm	+1 mm	-1 mm
Gap dimension

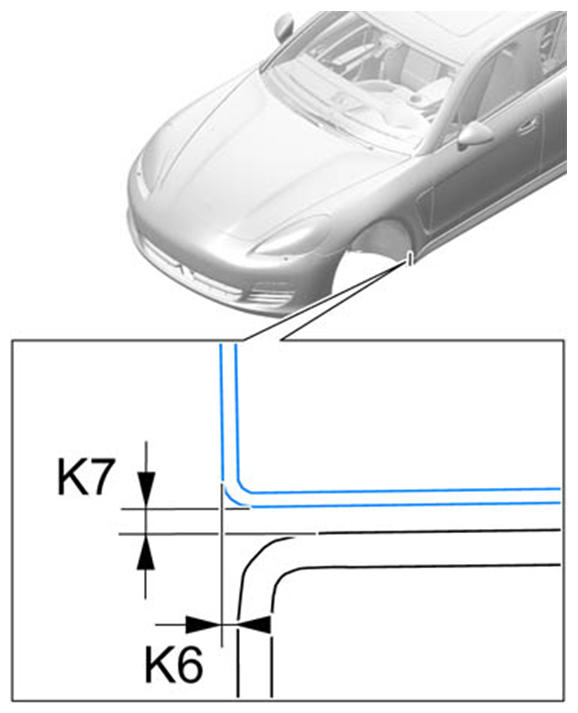

Wing to door entry guard (K6)		Gap dimension	4.5 mm	+1 mm	-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions
Wing to door entry guard (K7)		Gap dimension	0 mm	+1 mm	-1 mm
