Removing Wing

Information

• Some of the repair illustrations show only one side of the vehicle  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

Information

The number of plug connections can vary, depending on equipment.

1. Remove front profile seal -1-  as far as the lock carrier.

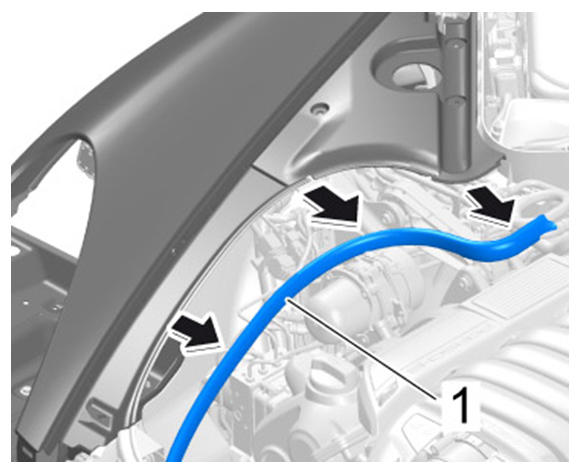

   Fig 1: Removing Profile Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove expansion rivet -1-  from the heat protection panel.

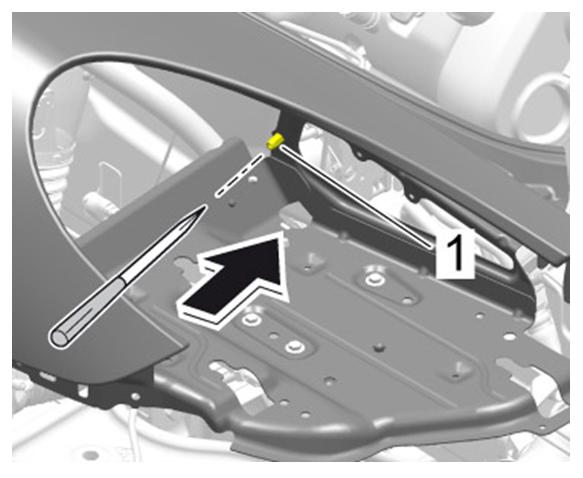

   Fig 2: Removing Expansion Rivet

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Push pin through towards the engine compartment.
   2. 2.2. Remove expansion rivet -1-  from the engine compartment side.
3. Unclip wiring harness -1-  under the headlight mounting point.

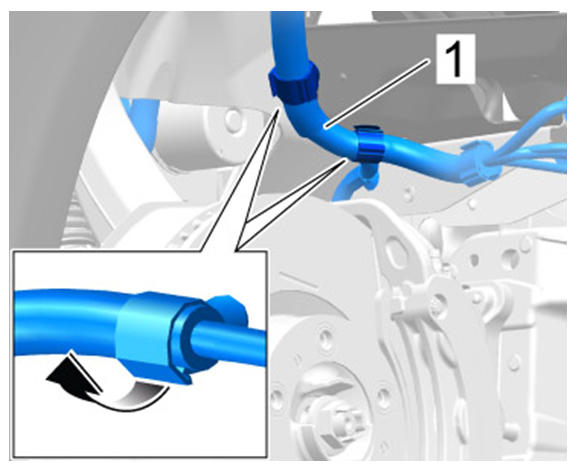

   Fig 3: Disconnecting Wiring Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   CAUTION: Incorrect triggering of airbag modules.

   • Danger of injury and material damage if airbag sensors are not handled correctly!

   → Remove ignition key. Disconnect battery. Route or isolate ground strap so that all contact with a ground carrier (e.g. body, seat frame) is avoided.

   → Always wait one minute after disconnecting the battery before disconnecting the connector from the sensor.

   → The airbag sensor must not be removed with the plug plugged in!

   → The airbag sensors cannot be interchanged. Install the sensor listed in the Spare Parts Information (PET).

   → Always replace fastening nuts and bolts of sensors after customer service and reworking.

   → Never make alterations to the micro-encapsulated nuts and bolts which have a negative effect on the bond (e.g. using lubricant, loosening bolts and screwing them down again).

4. Remove electric plug connection -1-  for airbag sensor.
   1. 4.1. Release electric plug connection -1-  . -a-
   2. 4.2. Pull off electric plug connection -1-  . -A

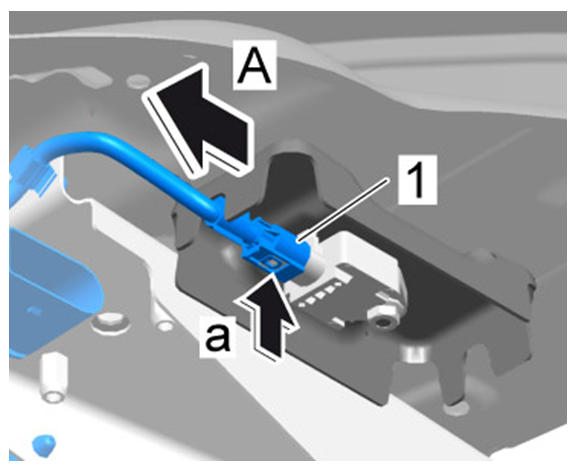

      Fig 4: Pulling Connector Off Airbag Sensor

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

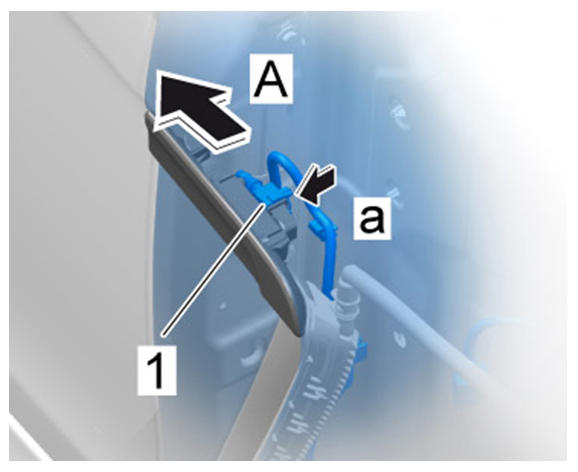

5. Release electric plug connection -1-  (-a-  ) and pull it off the side direction indicator light. -A
   Fig 5: Removing Side Direction Indicator Light

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

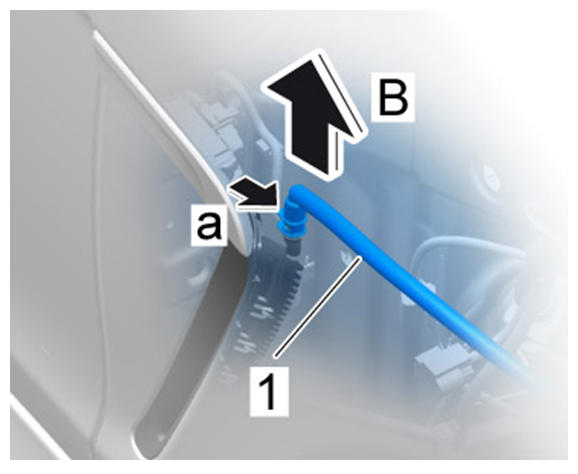

6. Remove hose -1-  for headlight ventilation.
   1. 6.1. Unclip hose -1-  for headlight ventilation at the retaining bracket.
   2. 6.2. Release locking mechanism on grommet at the air grille -a-  and remove grommet. -B-
   3. 6.3. Remove hose.
   Fig 6: Removing Hose For Headlight Ventilation
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove retaining strip.
   1. 7.1. Puncture and remove expansion rivets using a suitable tool.
   2. 7.2. Remove retaining strip -1-  .

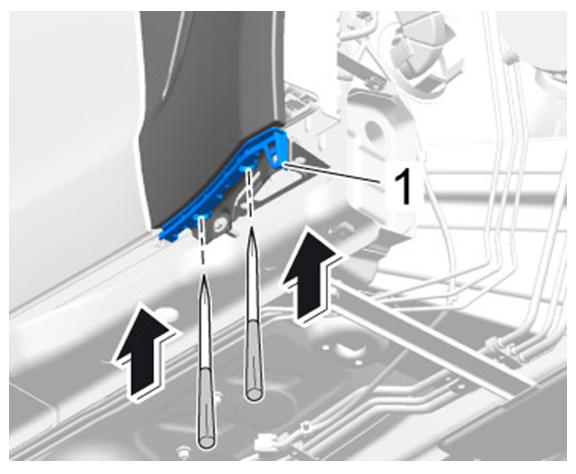

   Fig 7: Removing Retaining Strip
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Unscrew and remove lower fastening screws -1-  for the door sill.

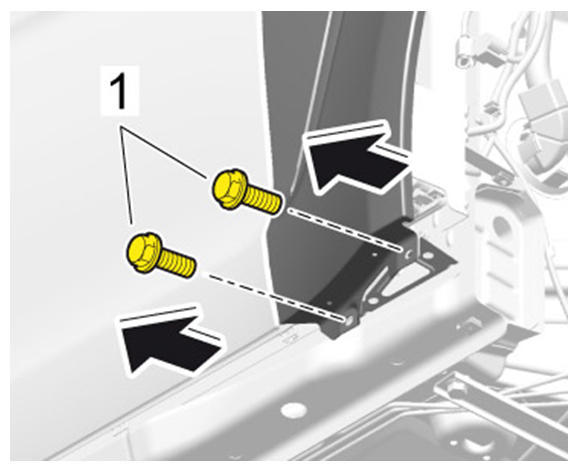

   Fig 8: Removing Fastening Screws For Door Sill

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Unscrew and remove fastening screws -1-  for the A-pillar.

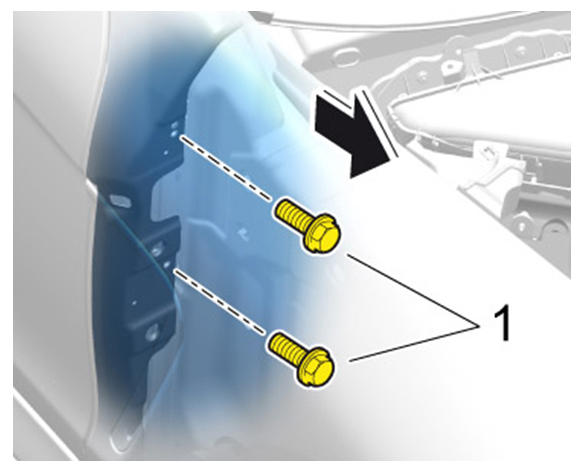

   Fig 9: Fastening Screws For A-Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

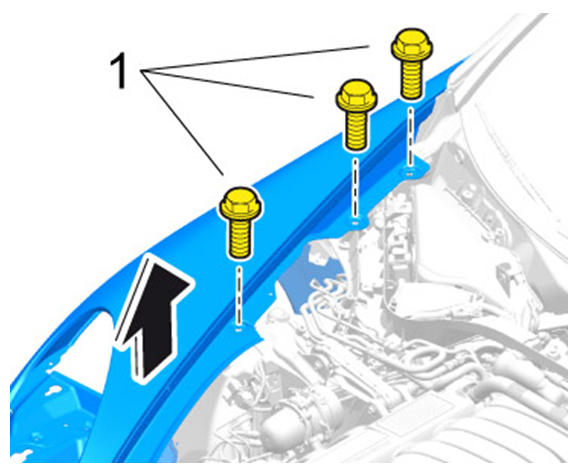

10. Unscrew and remove fastening screws -1-  under the headlight mounting point.
    Fig 10: Fastening Screws Under Headlight Mounting Point

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Unscrew and remove fastening screw -1-  for lock carrier.

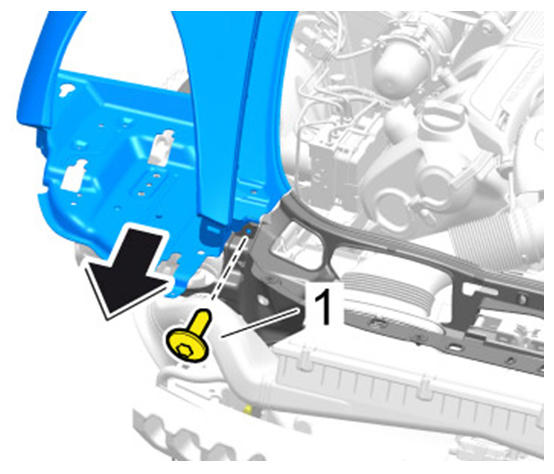

    Fig 11: Fastening Screw For Lock Carrier

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 11.1. Dispose of fastening screw -1-  and use a new screw during installation.

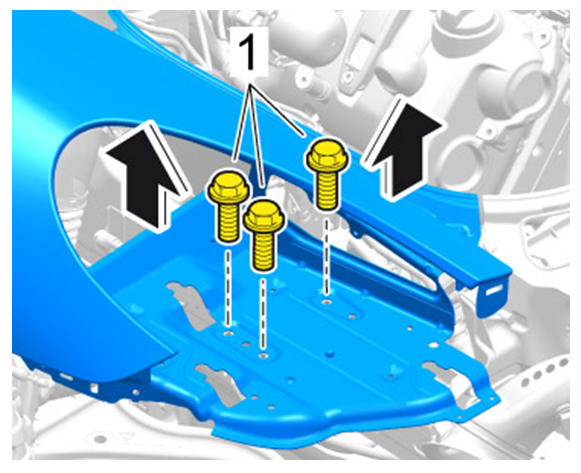

12. Unscrew and remove fastening screws -1-  .
    Fig 12: Fastening Screws In Engine Compartment

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Remove the wing.
    1. 13.1. Remove the wing carefully since the splash guard for the door area is still fitted.
