Installing Spring Strut Mount

Apply adhesive.

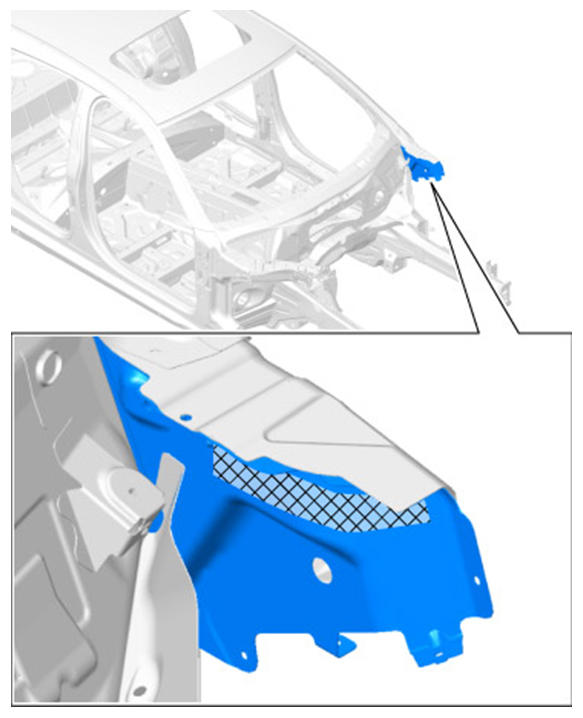

Fig 1: Identifying Connection Areas For Bonding (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

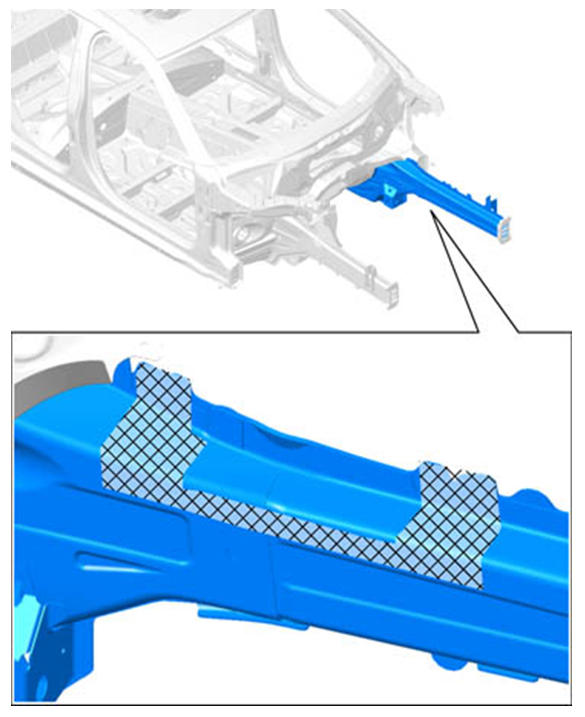

Fig 2: Identifying Connection Areas For Bonding (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

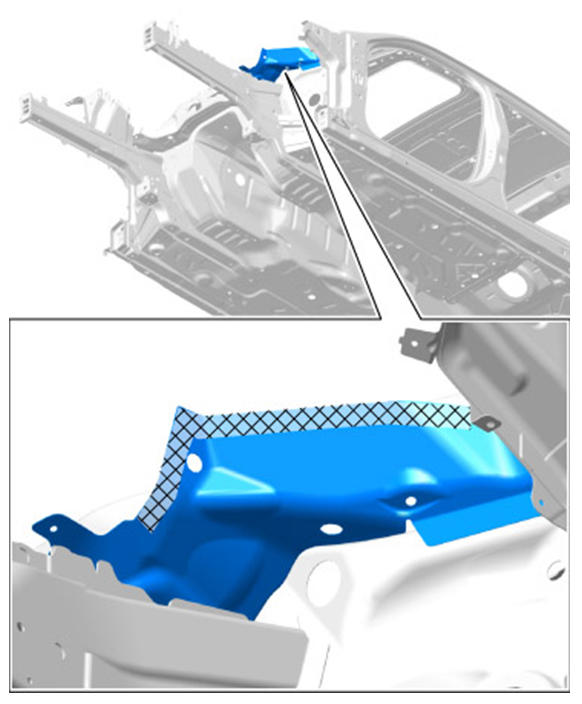

Fig 3: Identifying Connection Areas For Bonding (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert spring strut mount.
Rivet in spring strut mount.
1. 3.1. → BLIND RIVET 000.043.207.57

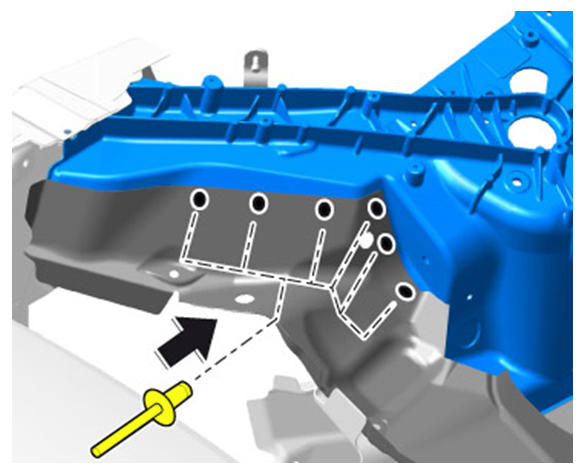

  Fig 4: Installing Spring Strut Mount (Blind Rivet 000.043.207.57)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. → BLIND RIVET 000.043.207.59

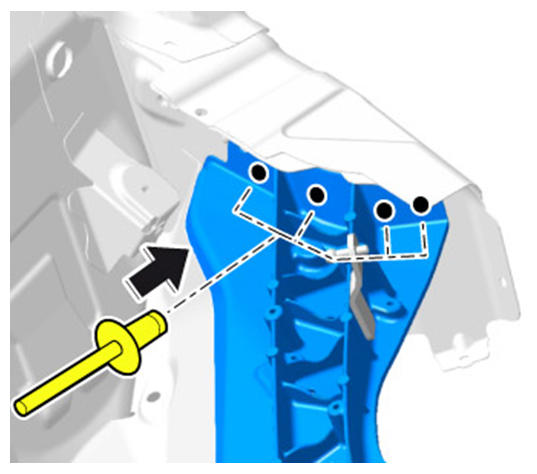

  Fig 5: Installing Spring Strut Mount (Blind Rivet 000.043.207.59)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. → BLIND RIVET 000.043.207.58

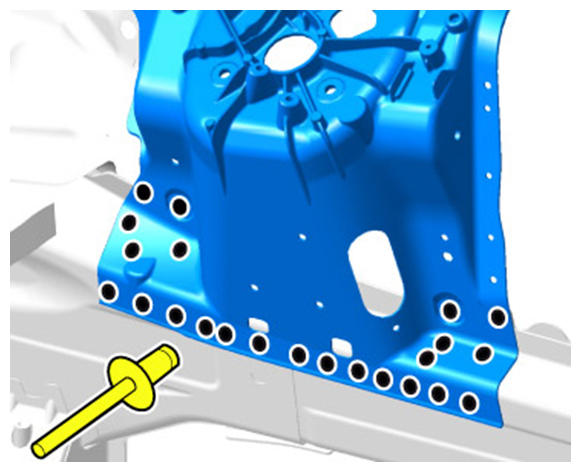

  Fig 6: Installing Spring Strut Mount (Blind Rivet 000.043.207.58)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit corner of plenum panel.

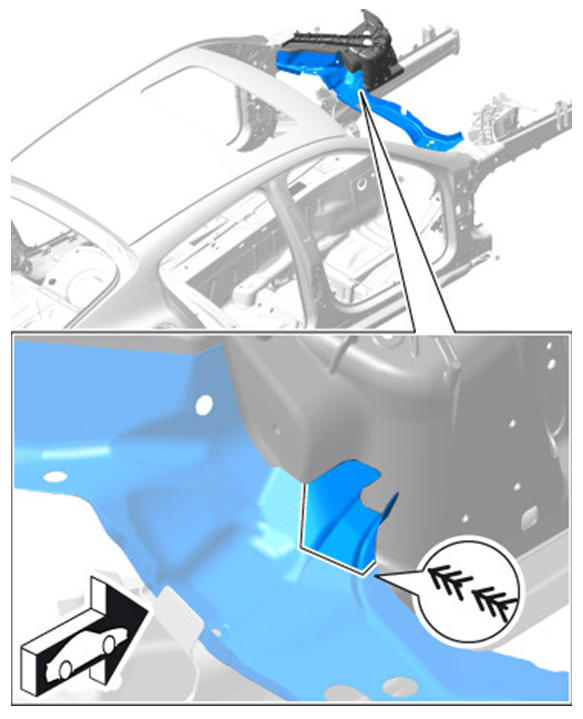

Fig 7: Installing Corner Of Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Weld corner of plenum panel with a continuous weld using inert gas.
Seal all flanges in the repair area.
