Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Fastening screws securing lock carrier to wing		Adjustment value	100 mm

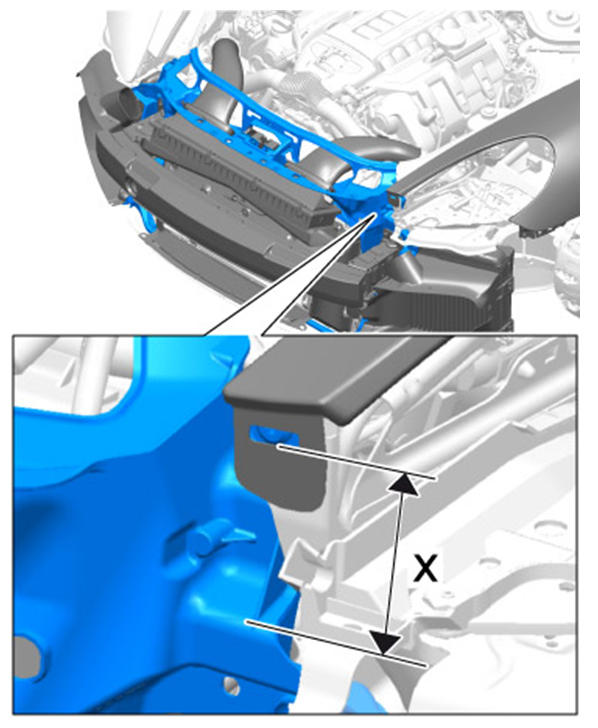

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjustment dimension of lock carrier
Fastening screws to front longitudinal member	Item 11	Tightening torque	50 Nm (37 ftlb.)	+5 Nm (+3.5 ftlb.)	-7.5 Nm (- 5.5 ftlb.)

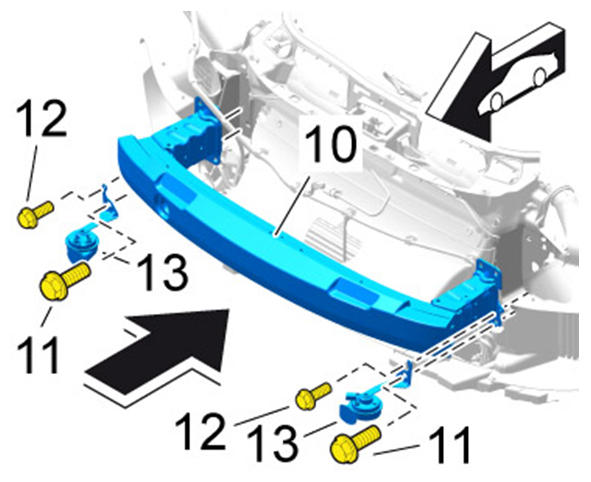

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing holder for horn
Fastening screws to front longitudinal member	Item 11	Tightening torque	50 Nm (37 ftlb.)	+5 Nm (+3.5 ftlb.)	-7.5 Nm (- 5.5 ftlb.)

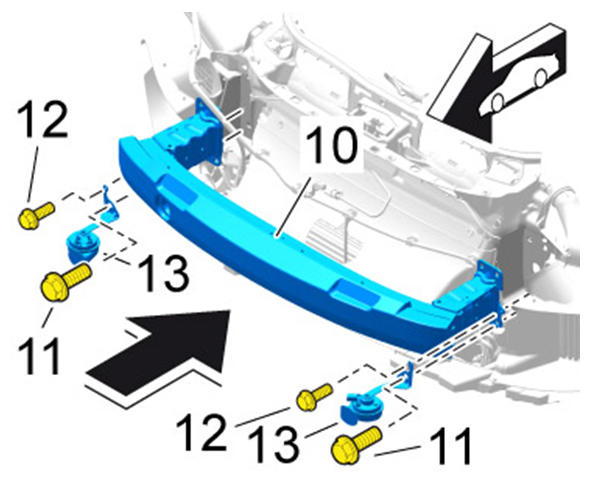

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing bumper
Fastening screws securing horn holder to lock carrier	For new lock carrier, item 12	Tightening torque	13 Nm	+1 Nm (+0.5 ftlb.)	-1.5 Nm (- 1 ftlb.)

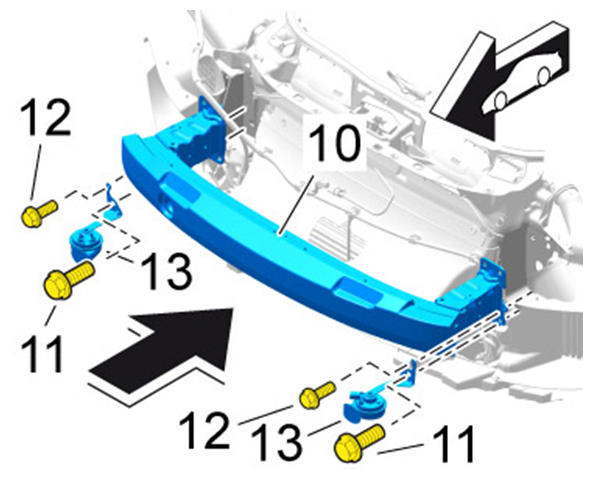

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing bumper
Fastening screws securing horn holder to lock carrier	When re-using old screws, item 12	Tightening torque	9.7 Nm	+/-0.5 Nm (+/- 0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing bumper
Fastening screws securing wing to lock carrier		Tightening torque	5.5 Nm (4 ftlb.)	+/-0.5 Nm (+/- 0.5 ftlb.)

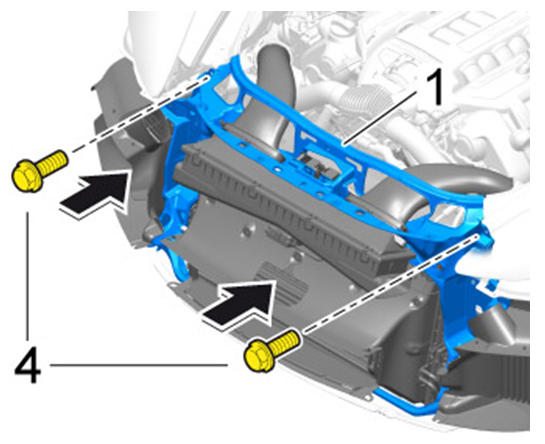

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing lock carrier at the top
Fastening screws securing charge-air cooler to lock carrier		Tightening torque	6.5 Nm	+/-0.5 Nm (+/- 0.5 ftlb.)

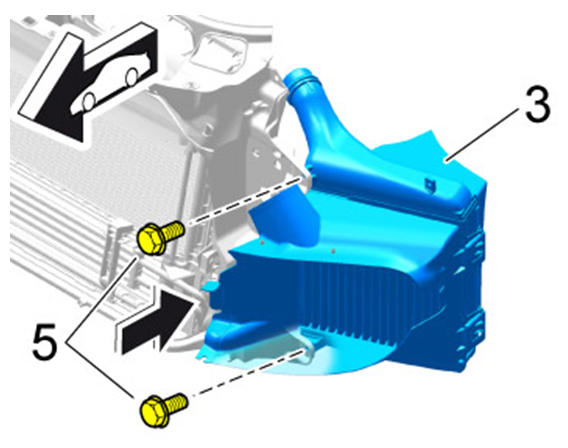

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing charge-air cooler
Fastening screws securing radiator module to lock carrier	For new lock carrier	Tightening torque	13 Nm	+1 Nm (+0.5 ftlb.)	-2 Nm (- 1.5 ftlb.)

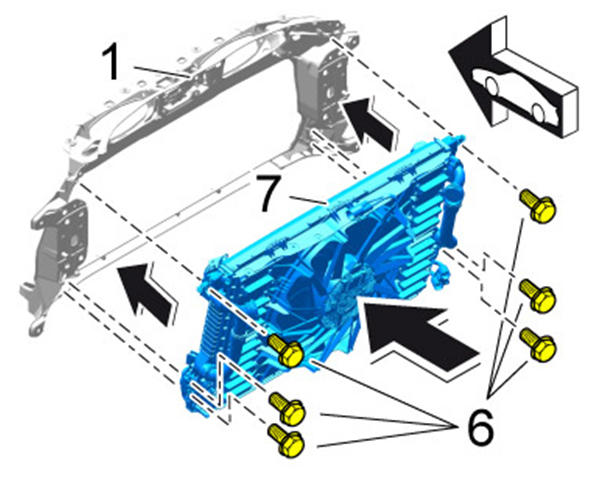

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing radiator module
