58 - Rear Door, Central Locking -- PANAMERA (970)
>>
WM 585155 Replacing Rear Door (Except PANAMERA Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Ball joint securing door arrester to door
Tightening torque
46 Nm
+/-5 Nm (+/-3.5 ftlb.)

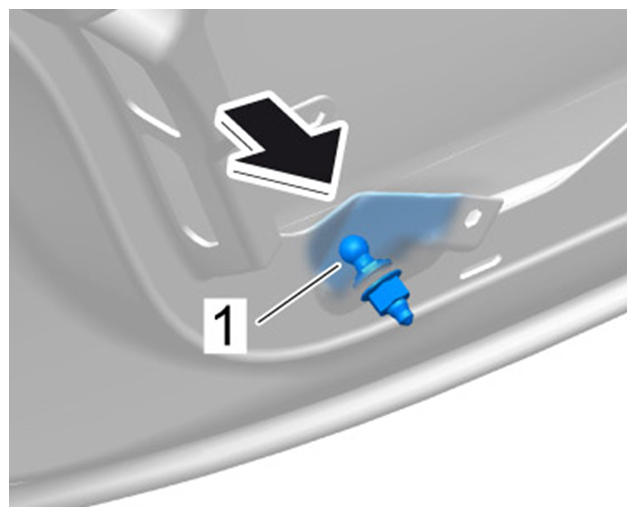

Installing ball joint for door arrester
