58 - Rear Door, Central Locking -- PANAMERA (970)
>>
WM 582619 Removing And Installing Lock Peg (Except PANAMERA Executive, PANAMERA 4S Sport Edition PANAMERA 4 Executive)
>>
Removing Lock Peg
Removing Lock Peg

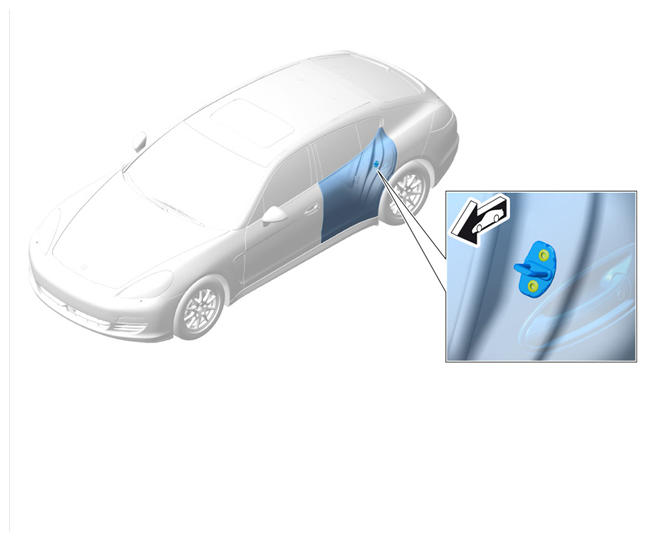

Fig 1: Identifying Removal Position Of Rear Lock Peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark position of lock peg.

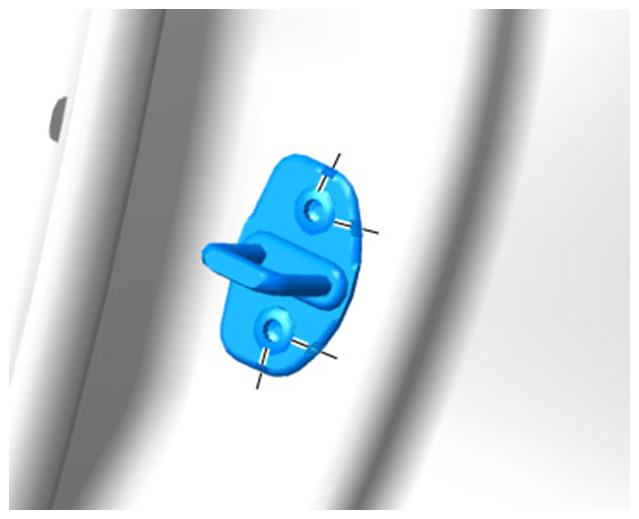

Fig 2: Identifying Marking Position Of Lock Peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws
-2-
and remove lock peg
-1-
.

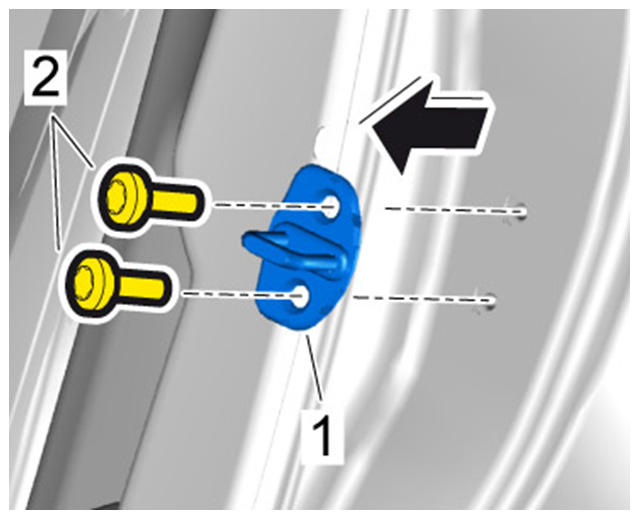

Fig 3: Removing Lock Peg
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
