Injectors (High-Pressure Fuel Injectors)
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

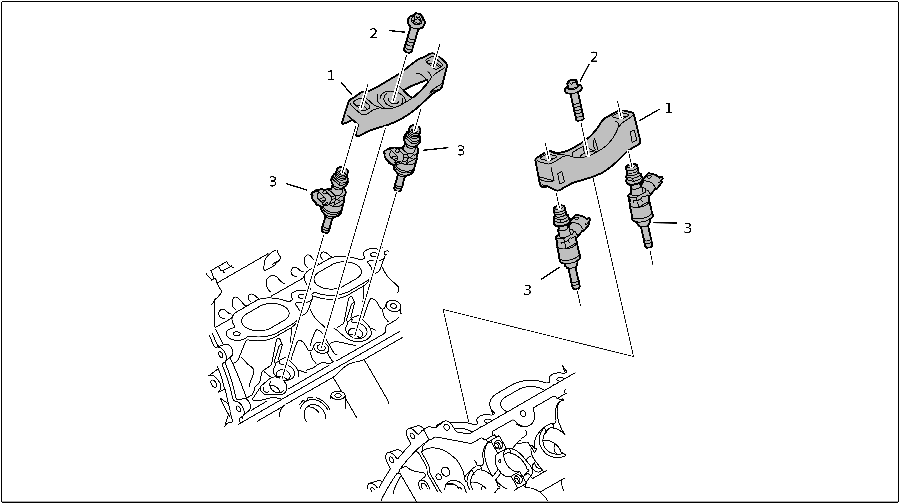

Injectors (high-pressure fuel injectors)
TIGHTENING TORQUE SPECIFICATIONS
| 1 |
Holder |
| 2 |
Screw. M8 x 30 > Tightening torque 23 (17 ftlb.) Nm
-- dang -- |
| 3 |
Injector (high-pressure fuel injector) |
