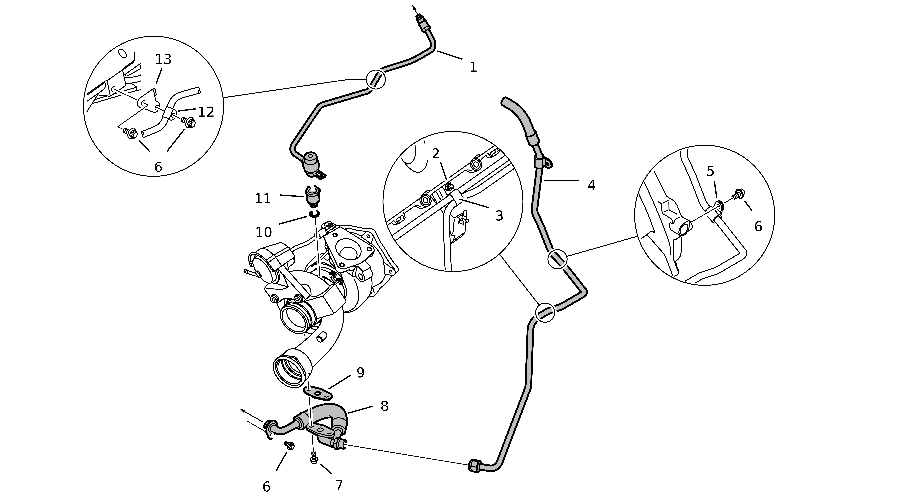

Turbocharger oil circuit, cylinders 5 to 8
TIGHTENING TORQUE SPECIFICATIONS
| 1 | Oil supply line for turbocharger, cylinders 5 to 8 |
| 2 | Nut. M6 > Tightening torque 6.5 (5 ftlb.) Nm -- dang -- |
| 3 | Holding clamp |
| 4 | Vent line on turbocharger for cylinders 5 to 8 > Tightening torque 10 (7.5 ftlb.) Nm -- dang -- |
| 5 | Holding clamp |
| 6 | Screw. M6 x 12: turbocharger oil feed line holder to lower part of crankcase > Tightening torque 10 (7.5 ftlb.) Nm -- dang -- : holding clamo for oil feed line to holder > Tightening torque 10 (7.5 ftlb.) Nm -- dang -- |
| 7 | Screw. M6 x 16 > Tightening torque 10 (7.5 ftlb.) Nm -- dang -- |
| 8 | Oil extraction line |
| 9 | Turbocharger seal, cylinders 5 to 8 |
| 10 | Sealing ring |
| 11 | Connection piece > Tightening torque 45 (33 ftlb.) Nm -- dang -- |
| 12 | Clamp |
| 13 | Holder for oil supply line |
