Installing Seal For Sliding Roof

Position the seal.
1. 1.1. Align the gap in the seal -1- with the rear edge of the glass panel.
2. 1.2. Place the seal loosely around the glass panel.

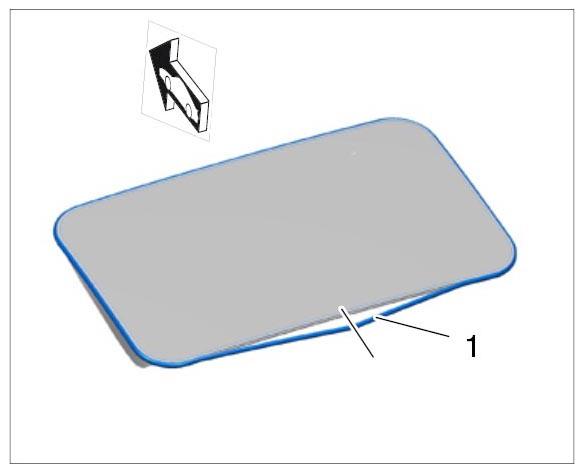

Fig 1: Fitting Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the seal.
1. 2.1. On the front of the panel, press the seal into the panel, starting from the center.
2. 2.2. Insert the seal all the way around.
3. 2.3. Insert the seal without tension at the gap -1- .
