Removing Front Panel For Roof Assembly

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
• These must be carried out as a mirror image of the steps shown for the front and rear.

1. Raise the glass panel -2-  until the side covers -1-  are accessible.
2. Pull the covers -1-  out to the rear from the passenger compartment -A-  .
   Fig 1: Removing Side Covers

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Pull the seal -3-  off the assembly frame until the fastening screws -2-  are accessible.
4. Unscrew fastening screws -2-  on the glass panel -1-  .

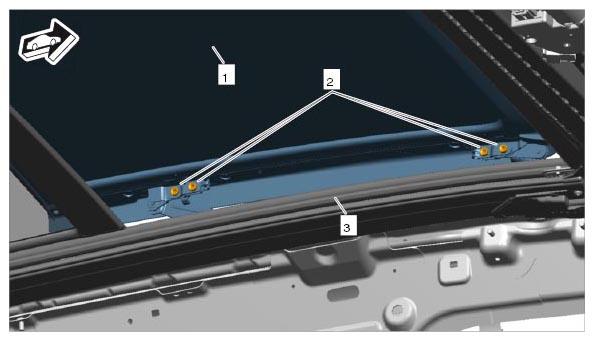

   Fig 2: Removing Front Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Lift the glass panel up and remove it.
