Installing Rear Panel For Roof Assembly

Slide the rear glass panel -1- from above at an angle under the front glass panel -1- (-A- ).

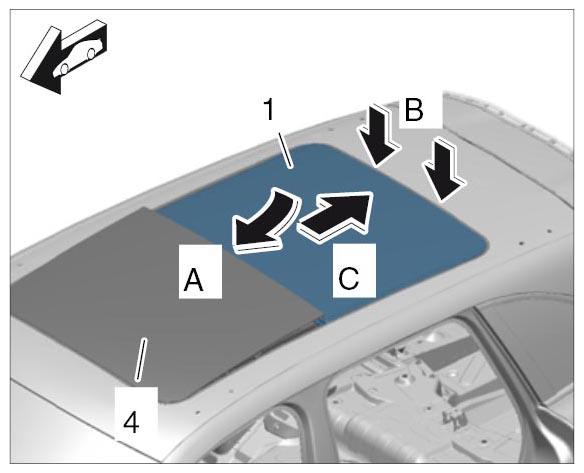

Fig 1: Fitting Rear Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the rear part of the rear glass panel -1- down into the roof cut-out -B- and slide it towards the rear -C- .
Information

Always use new screws when installing the glass panel.
Screw in fastening screws -2- , but do not tighten them.

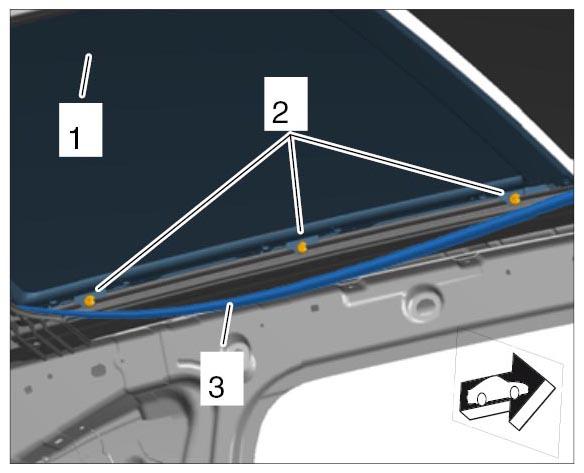

Fig 2: Installing Glass Panel Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjust gap dimensions. Gap dimension 2 mm +/-0.5 mm Gap dimension 1 mm +1.2 mm -0.6 mm Gap dimension 10 mm +/-1.2 mm Gap dimension 0.8 mm +/-1 mm
When positioning the panel, check that there is an equal gap between the panel and roof cut-out. Align the panel in the longitudinal and transverse direction if necessary.
Tighten fastening screws -2- to → Tightening Torque: 7 Nm (5 ft. lb. . )
Press the seal -3- onto the assembly frame.
Once you have completed all required work, teach the roof system. → WM 600625 PROGRAMMING/TEACHING ROOF ASSEMBLY (PANORAMA ROOF) Teaching roof systems
