Installing Roof Assembly (Panoramic Roof)

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

Three people are needed in order to position the roof assembly when installing it on the vehicle.

1. Place roof assembly in installation position.
   1. 1.1. Guide the roof assembly through the rear lid opening into the passenger compartment with the help of another person.
   2. 1.2. Press the roof assembly up and position it.
   3. 1.3. Screw in fastening screws so that the roof assembly can still be moved slightly.
   4. 1.4. Move the roof assembly until the locating bores are free.
   5. 1.5. Position the roof assembly at the locating bores using the punches -4-  and tighten to Diameter 8 mm (6 ft. lb.)  .

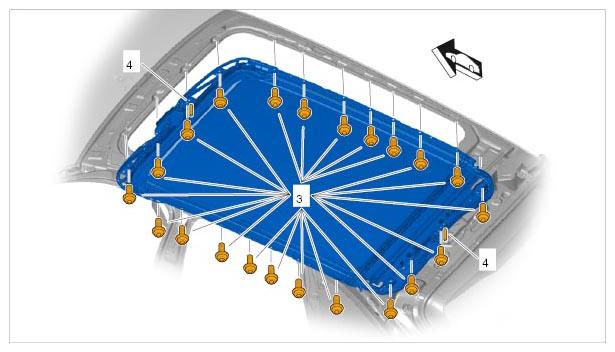

      Fig 1: Positioning Roof Assembly

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Check that the outer seal is positioned correctly.
3. Secure the roof assembly.
   1. 3.1. Tighten fastening screws -3-  from front to rear in alternating sequence at the left and right to Tightening Torque 8 Nm (6 ft. lb.)  .

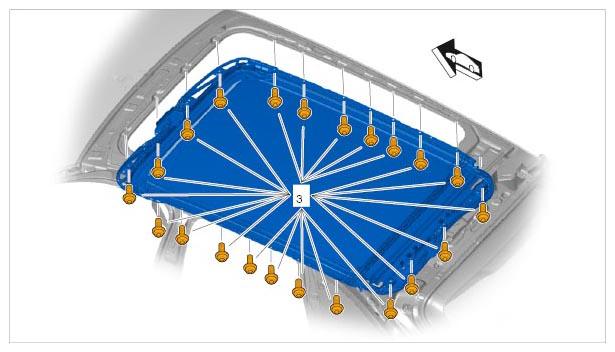

      Fig 2: Installing Roof Assembly

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Remove the punches -4-  from the roof assembly.
   3. 3.3. Screw in fastening screws -1-  on the brackets -2-  at the sides and tighten to Tightening Torque 8 Nm (6 ft. lb.)  .

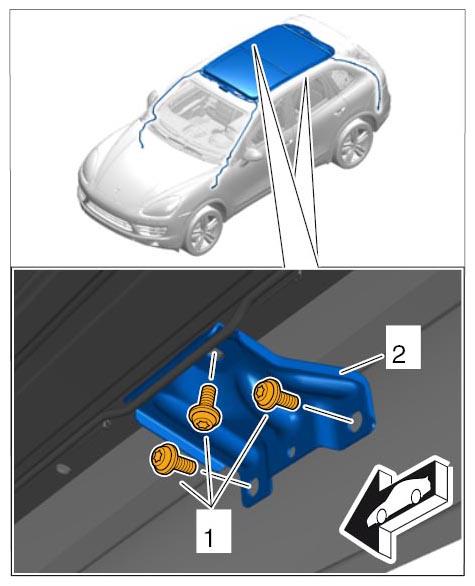

      Fig 3: Installing Bracket

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   4. 3.4. Screw on and tighten fastening nuts -1-  on the grab handle brackets -2-  .

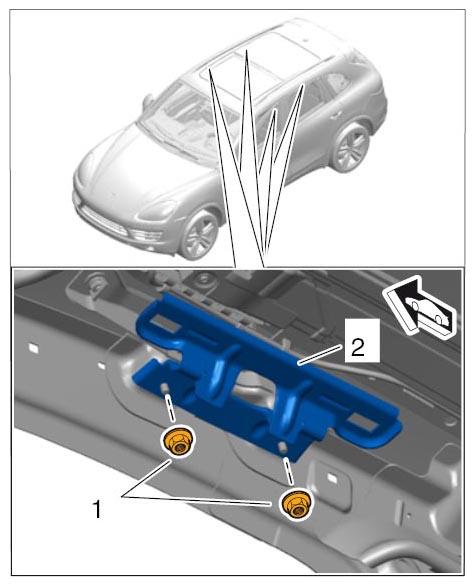

      Fig 4: Installing Grab Handle Bracket

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Bend tab on the head airbag holder back up into its original shape again.

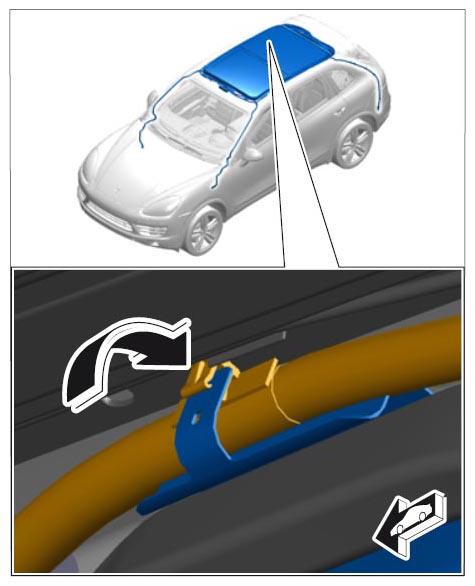

   Fig 5: Bending Tab On Head Airbag Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

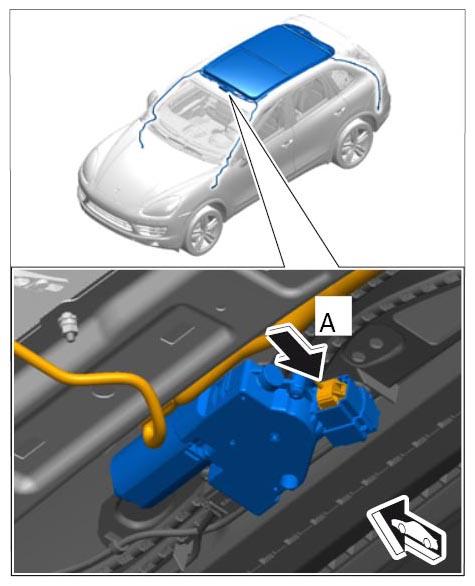

5. Connect plug connection to the wiring harness.
   Fig 6: Connecting Wiring Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Connect water drain hoses to the connection pieces and check that they are seated securely.

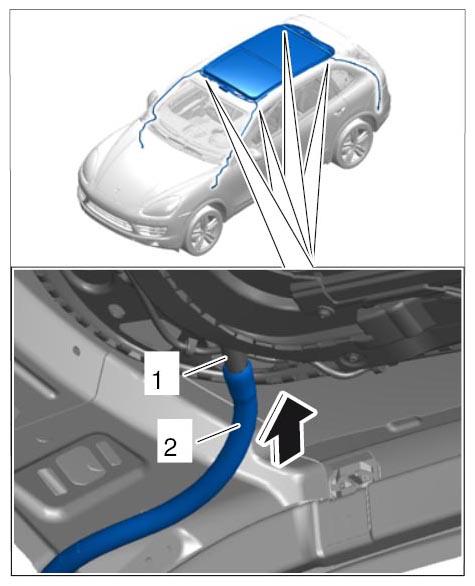

   Fig 7: Connecting Water Drain Hoses

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Check the gap dimensions of the glass panel. → 5X00IN DIAGRAM - BODY GAP DIMENSIONS
