Removing Sliding Roof

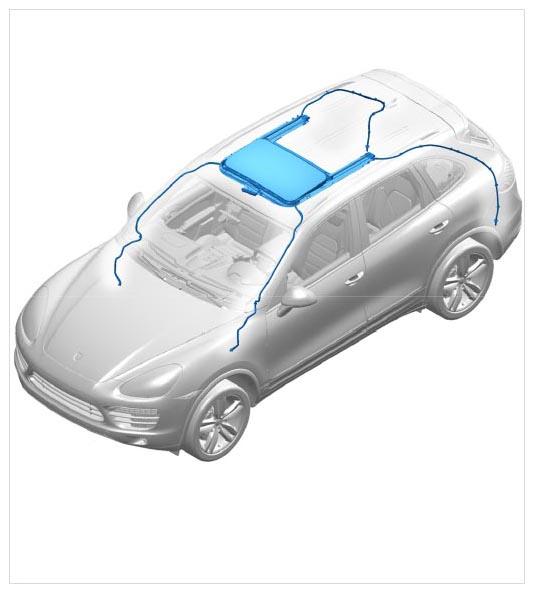

Fig 1: Identifying Sliding Roof Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Fold rear seat assembly over and tilt the front-seat backrests back.

1. Pull off water drain hoses.
   1. 1.1. Pull front water drain hoses -2-  off the connection piece -1-  .

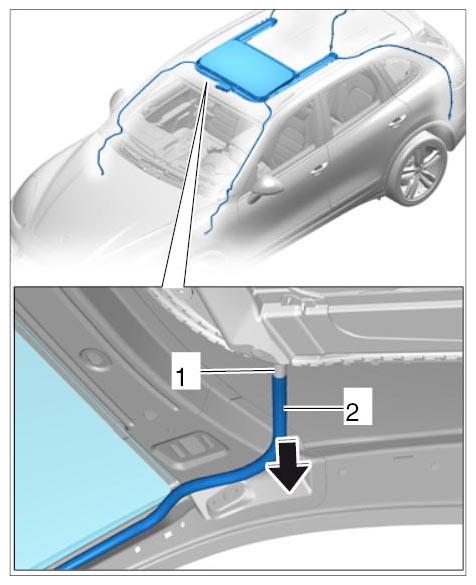

      Fig 2: Pulling Off Front Water Drain Hoses

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Pull rear water drain hoses -2-  off the connection piece -1-  .

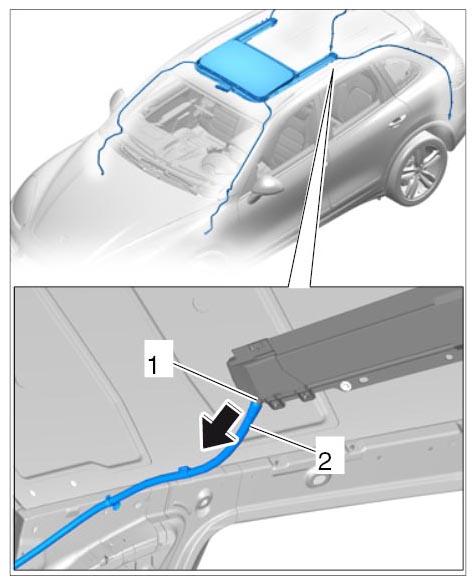

      Fig 3: Pulling Off Rear Water Drain Hoses

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release plug connection for sunroof motor -2-  (-a-  ) and pull it off -B-  .

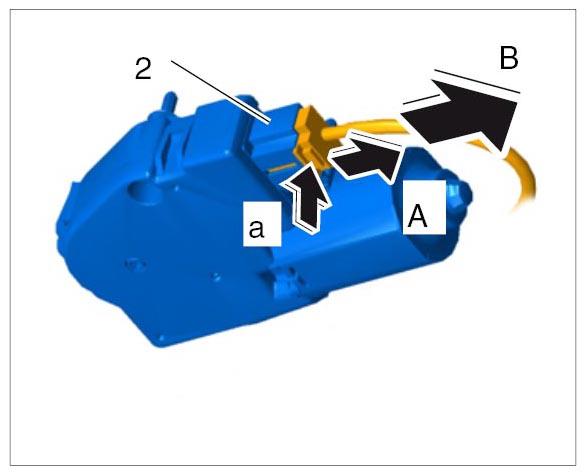

   Fig 4: Disconnecting Plug Connection From Motor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Loosen the sliding roof. (Get another person to hold the sliding roof to prevent it from falling down)
   1. 3.1. Unscrew front fastening screws -2-  for the sliding roof -1-  from the outside in.

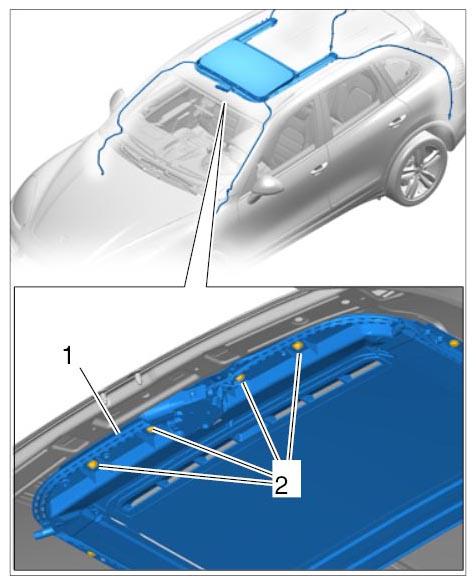

      Fig 5: Loosening Front Sliding Roof Mounting Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Unscrew side fastening screws -2-  for the sliding roof -1-  .

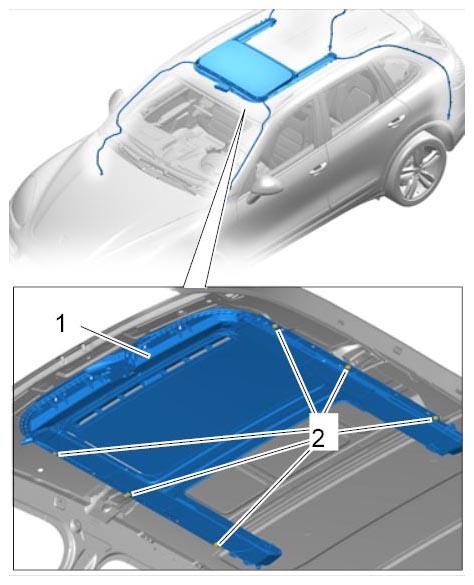

      Fig 6: Loosening Side Sliding Roof Mounting Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 3.3. Remove the sliding roof with the help of another person and pull it out of the passenger compartment through the rear lid opening.
