Installing Sliding Roof

Place sliding roof in installation position.
1. 1.1. Guide the sliding roof through the rear lid opening into the passenger compartment with the help of another person.
2. 1.2. Fit the sliding roof on the roof frame.
3. 1.3. Screw in fastening screws so that the frame for the sliding roof can still be moved slightly.
4. 1.4. Move the sliding roof until the locating bores are free.

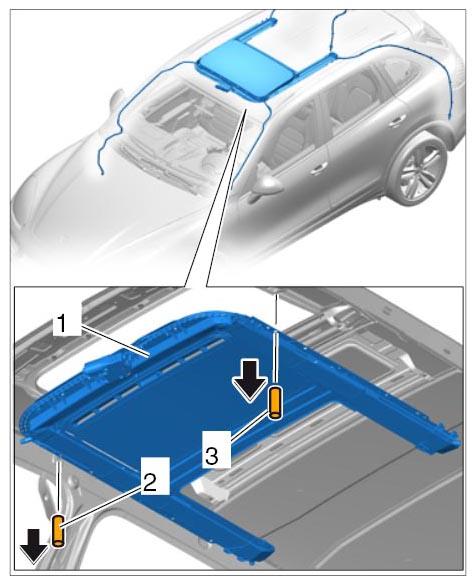

5. 1.5. Position the sliding roof -1- at the locating bores using the punches -2 and 3- and tighten to Diameter 12 mm .

  Fig 1: Fitting Punches
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the sliding roof.
1. 2.1. Screw in front fastening screws -2- from the inside out and tighten to Tightening Torque 8 Nm (6 ft. lb.) .

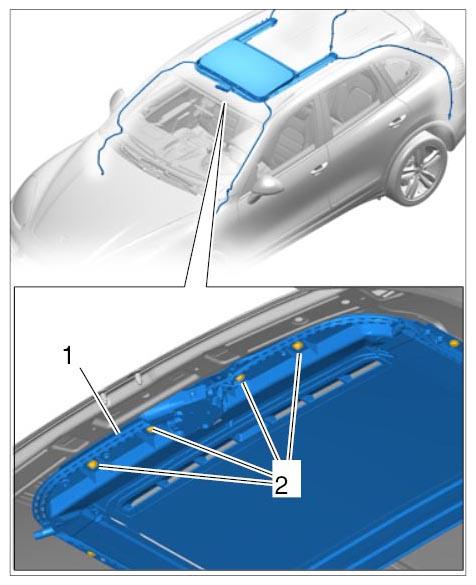

  Fig 2: Securing Sliding Roof At Front
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

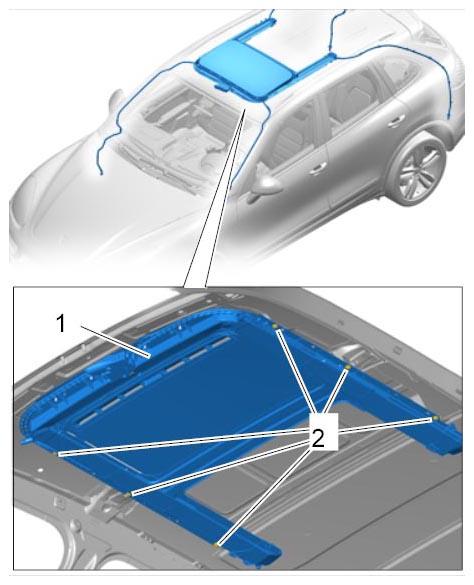

2. 2.2. Screw in side fastening screws -2- from front to rear and tighten to Tightening Torque 8 Nm (6 ft. lb.) .

  Fig 3: Securing Sliding Roof At Sides
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Remove the punches -2 and 3- from the sliding roof -1- .

  Fig 4: Removing Punches
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

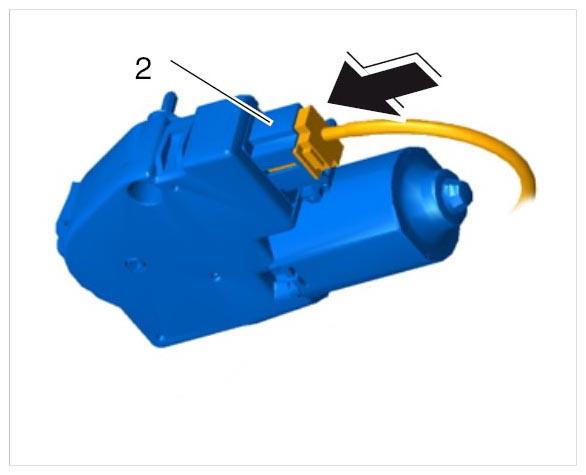

Connect plug connection for sunroof motor -2- .

Fig 5: Connecting Plug Connection To Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure water drain hoses.

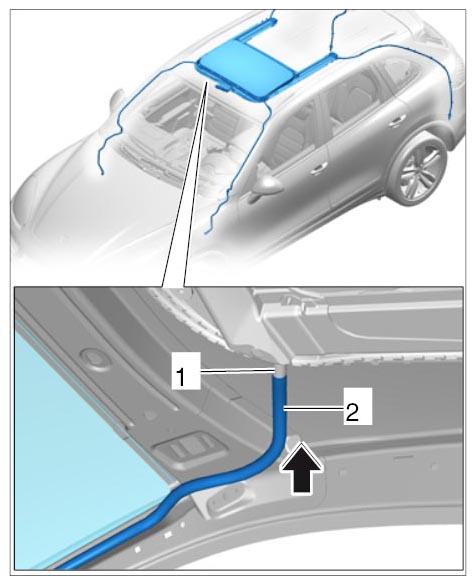

1. 4.1. Connect front water drain hoses -2- to the connection piece -1- .

  Fig 6: Connecting Water Drain Hoses At Front
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

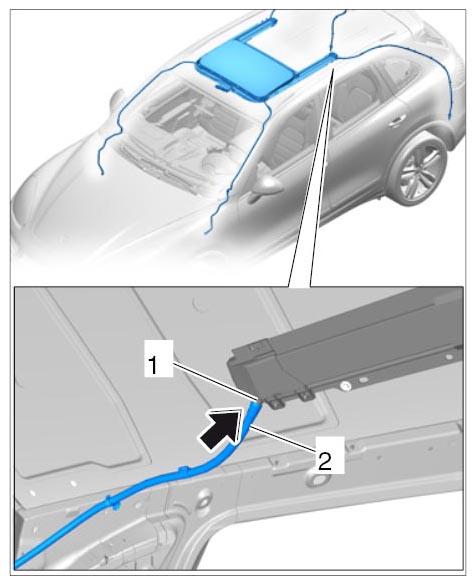

2. 4.2. Connect rear water drain hoses -2- to the connection piece -1- .

  Fig 7: Connecting Water Drain Hoses At Rear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Check that the water drain hoses are fitted securely.
